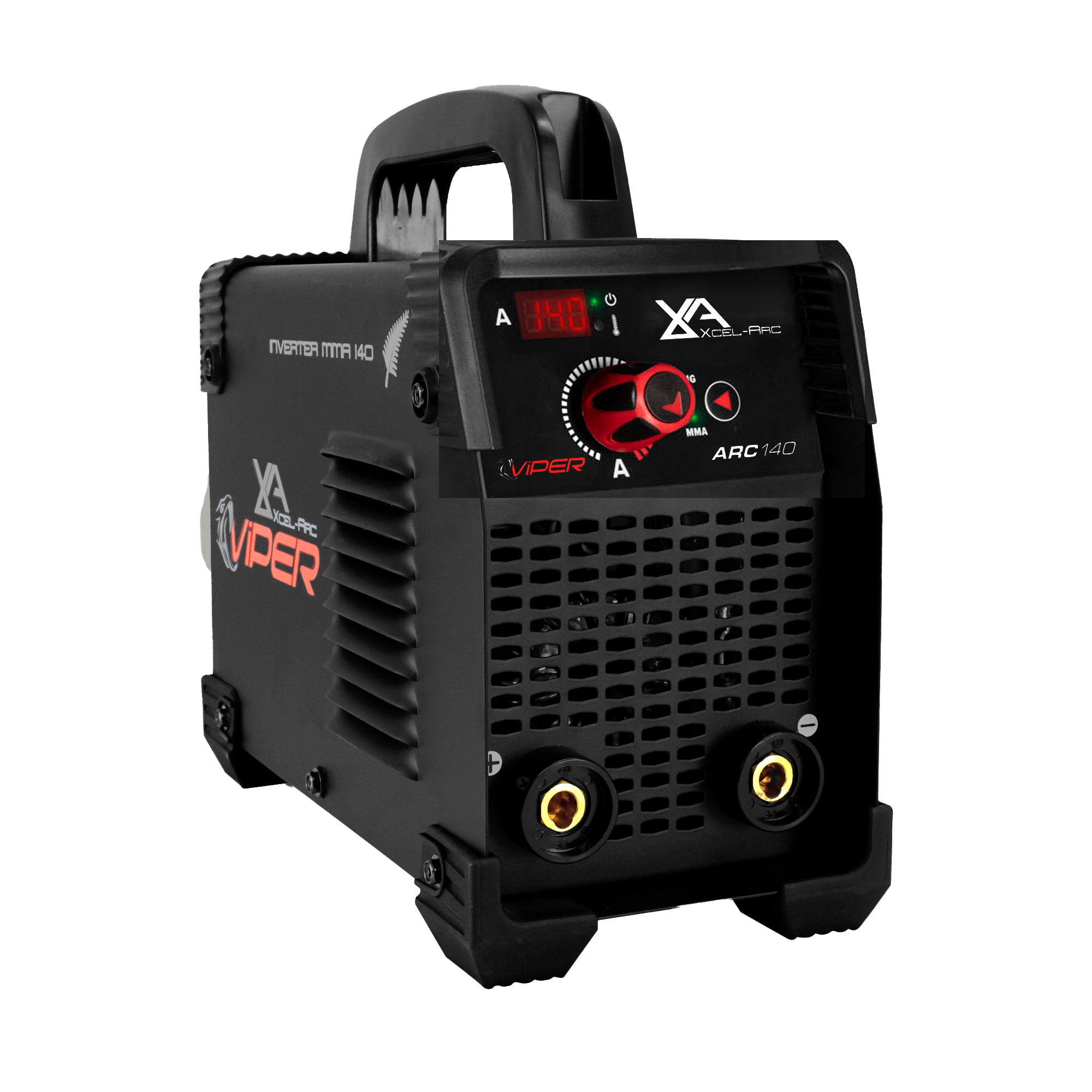

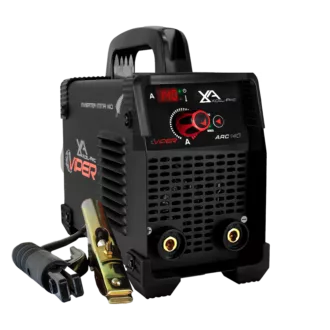

Don’t let the pros have all the fun. The VIPER™ ARC 140 is the perfect STICK welder to get you up and running. Packed with all the features you need for STICK welding, this is the welder that proves you don’t need to break the bank for a decent machine. Better yet, it comes with the pioneering build quality Xcel-Arc is recognised for throughout the industry. The VIPER™ ARC 140 also features DC Scratch Start TIG in case you needed another excuse to purchase.

What’s inside

• VIPER ARC 140 STICK Welder

• 2.5m Electrode Holder & Lead

• 2.5m Earth Clamp & Lead

• Automatic Welding Helmet

• TRADESMAN Heavy Duty Welding Gloves

• Chipping Hammer

• Operating Manual

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

RATED INPUT POWER (kVA)

6.5

Ieff (A)

10.0

RATED OUTPUT

10-140A

NO LOAD VOLTAGE (V)

62.9

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.65

MINIMUM GENERATOR (kVA)

6.5

DINSE CONNECTOR

10/25

STANDARD:

AS/NZ60974-1

SUITABLE MATERIAL:
Mild Steel, Stainless Steel, Copper, Cast Iron

WARRANTY (Years):
1

TIG SPECIFICATIONS

TIG FUNCTION TYPE:

DC Scratch Start

TIG WELDING THICKNESS RANGE:

1-3mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE:

20-140A

STICK DUTY CYCLE @ 40°C:

15% @ 140A

STICK ELECTRODE RANGE:

2.5-3.2mm

STICK WELDING THICKNESS RANGE:

2-8mm

SIZE & WEIGHT

DIMENSIONS (mm)

295x135x270mm

WEIGHT (kg)

3.8kg

Product Code: XA-VA140
