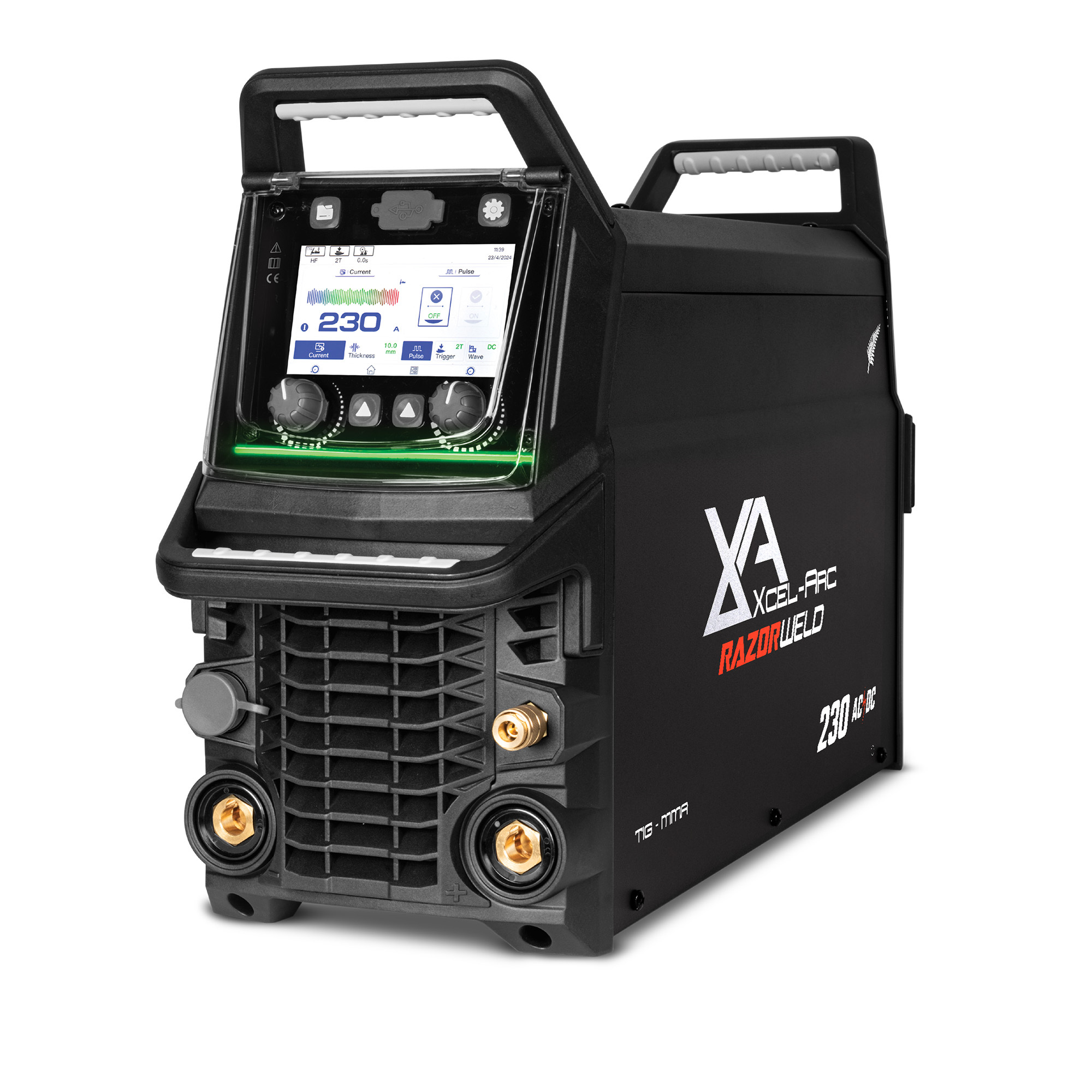

Filled with the latest TIG technologies, this professional-grade TIG welder produces superior welds every time.

First-of-its-kind, next-generation silicon carbide MOSFET technology

Extra control with advanced TIG parameters

Maintain a stable arc as low as 2A

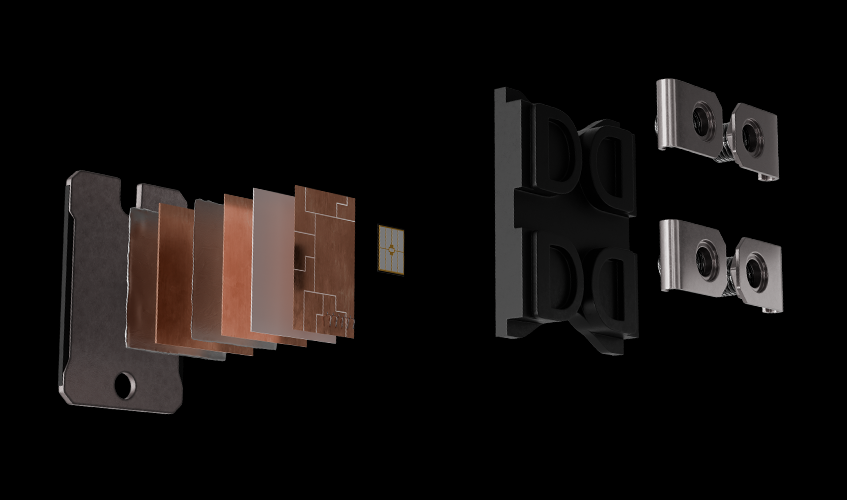

Silicon Carbide Technology

The first of its kind, the new silicon carbide (SiC) MOSFET is the next-generation of semiconductor technology. Our new SiC MOSFET works to make the machine more reliable, with a superior arc performance and better weld quality compared to previous IGBT technology.

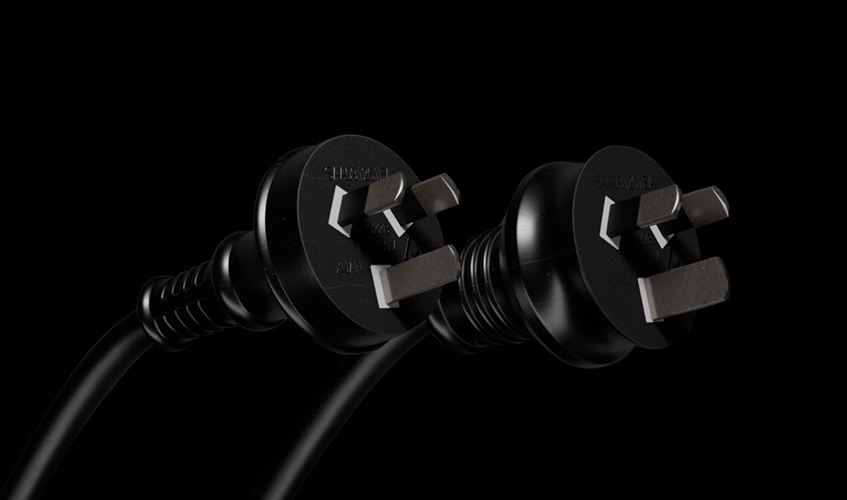

Dual Plug Compatibility

Experience unmatched flexibility by connecting to either a 10A or 15A outlet. In 10A mode, the duty cycle is adjusted to optimise performance with a 10A outlet. Switch to 15A mode to increase the duty cycle, allowing you to fully harness the power capabilities of a 15A outlet for maximum performance.

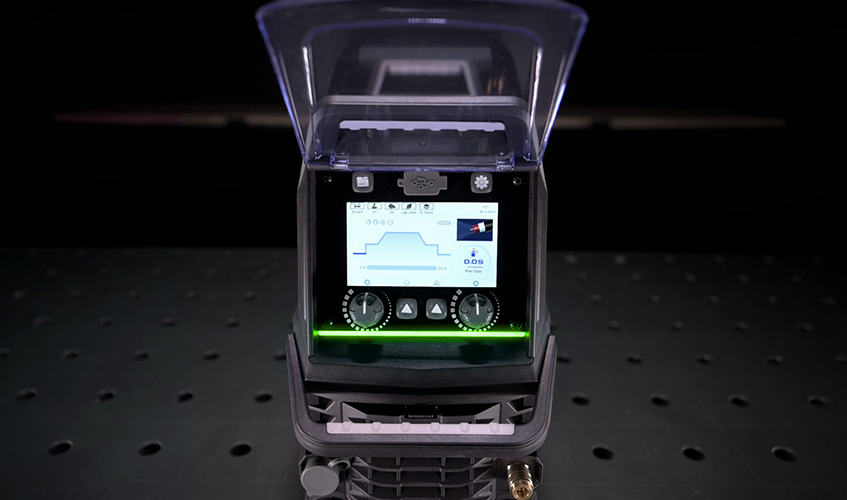

5” Colour LCD Touchscreen

Change settings with ease with the intuitive touchscreen controls and next-generation user interface.

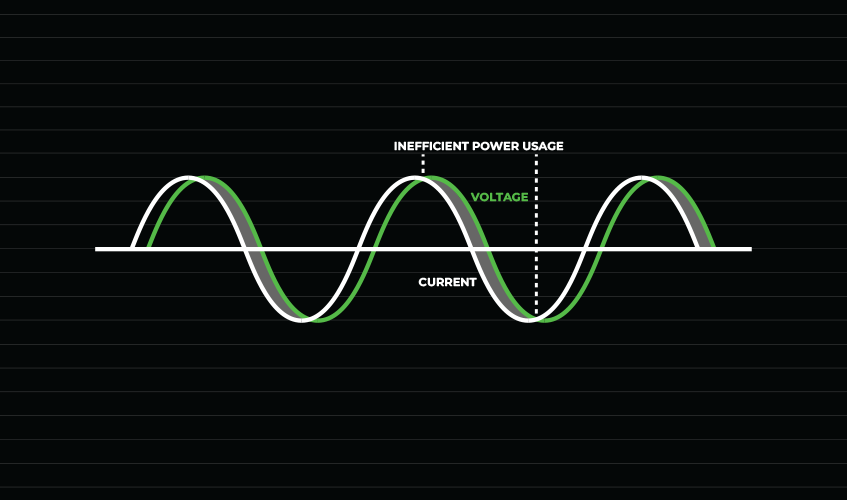

Power Factor Correction (PFC)

Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.

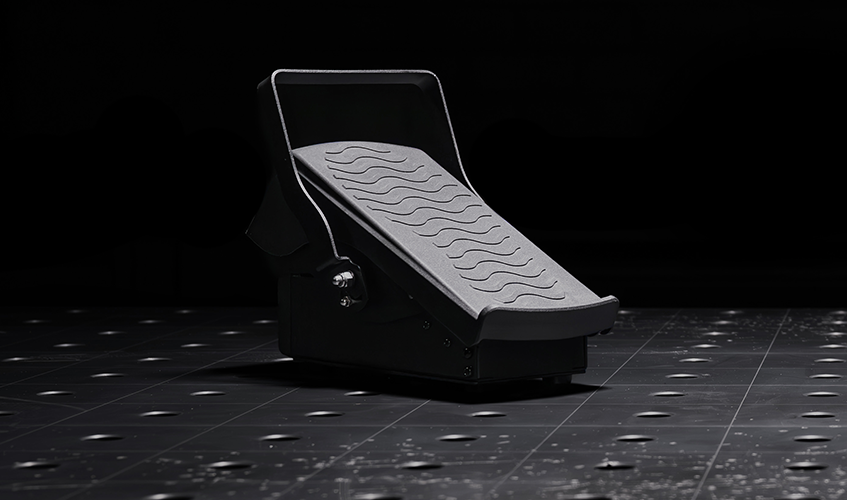

FOOT CONTROL READY

This machine supports the connection of both a wired or wireless foot control for extra versatility and convenience while welding. You can adjust your amperage hands-free to avoid disrupting your torch movement, and the wireless option reduces cables and adds greater manoeuvrability as well.

Speed Start

Speed up the formation of the weld puddle by applying a synergic pulse program to the beginning of the weld. The initial pulse works to melt the joint edges faster, for quicker puddle formation compared to a standard arc start.

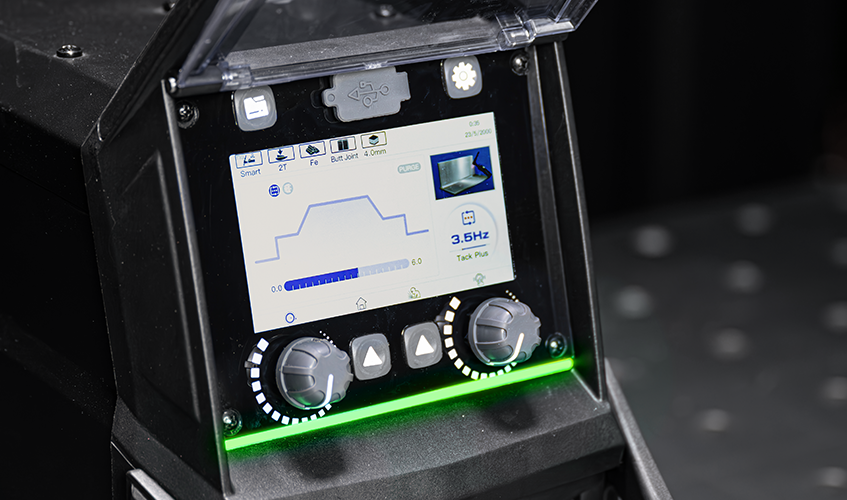

TackPlus

TackPlus is a tack welding program used to create evenly spaced and sized fusion tack welds along a joint with minimal heat input.

Steady Arc

Steady Arc adjusts the welding current based on the arc voltage. When the voltage goes down, the amperage will go up, and vice versa, to give a consistent weld puddle, a sharper arc and a constant heat input. Weld speeds can be increased with no fluctuations in the weld current.

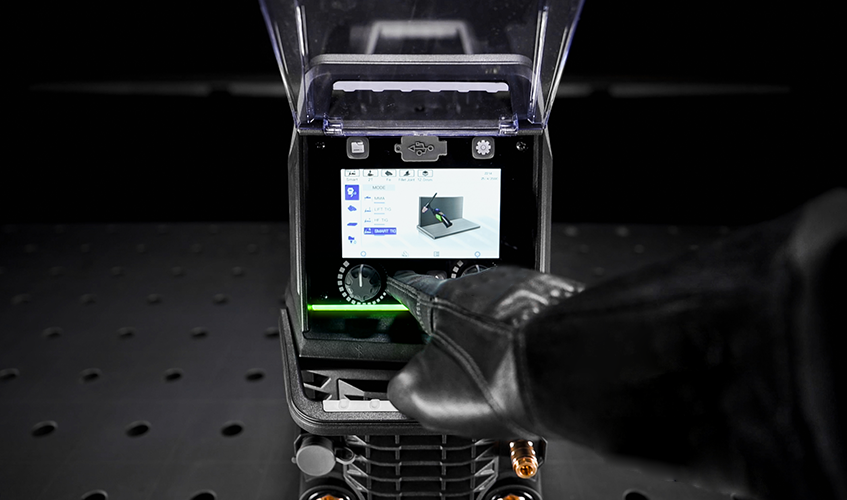

TIG Smart-Set

The easiest way to set up for a TIG weld, simply set your filler material, joint type, tungsten diameter, and material thickness and you’re good to go!

Mixed AC/DC

Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld thicker materials.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10/15A

Ieff (A)

9.7A (10A) / 14.8A (15A)

RATED OUTPUT

2-230A

NO LOAD VOLTAGE (V)

100

PROTECTION CLASS

IP21S

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

8.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL: TIG: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium MMA: Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years): 5

TIG SPECIFICATIONS

TIG FUNCTION TYPE

AC/DC HF TIG & AC/DC Pulse

TIG WELDING CURRENT RANGE
2-230A

TIG DUTY CYCLE @ 40°C
15% @ 230A, 60% @ 115A, 100% @ 89A (10A) / 35% @ 230A, 60% @ 176A, 100% @ 136A (15A)

TIG WELDING THICKNESS RANGE
1-12mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-200A

STICK DUTY CYCLE @ 40°C

10% @ 200A, 60% @ 82A, 100% @ 63A (10A) / 20% @ 200A, 60% @ 115A, 100% @ 90A (15A)

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

Size & Weight

DIMENSIONS (mm)

680x210x395mm

WEIGHT (kg)

20.6

MACHINE FEATURES

VRD Yes

FOOT CONTROL CONNECTION: YES

Product Code: xa-tig230rzacdc-k
