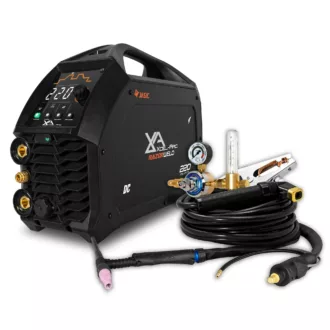

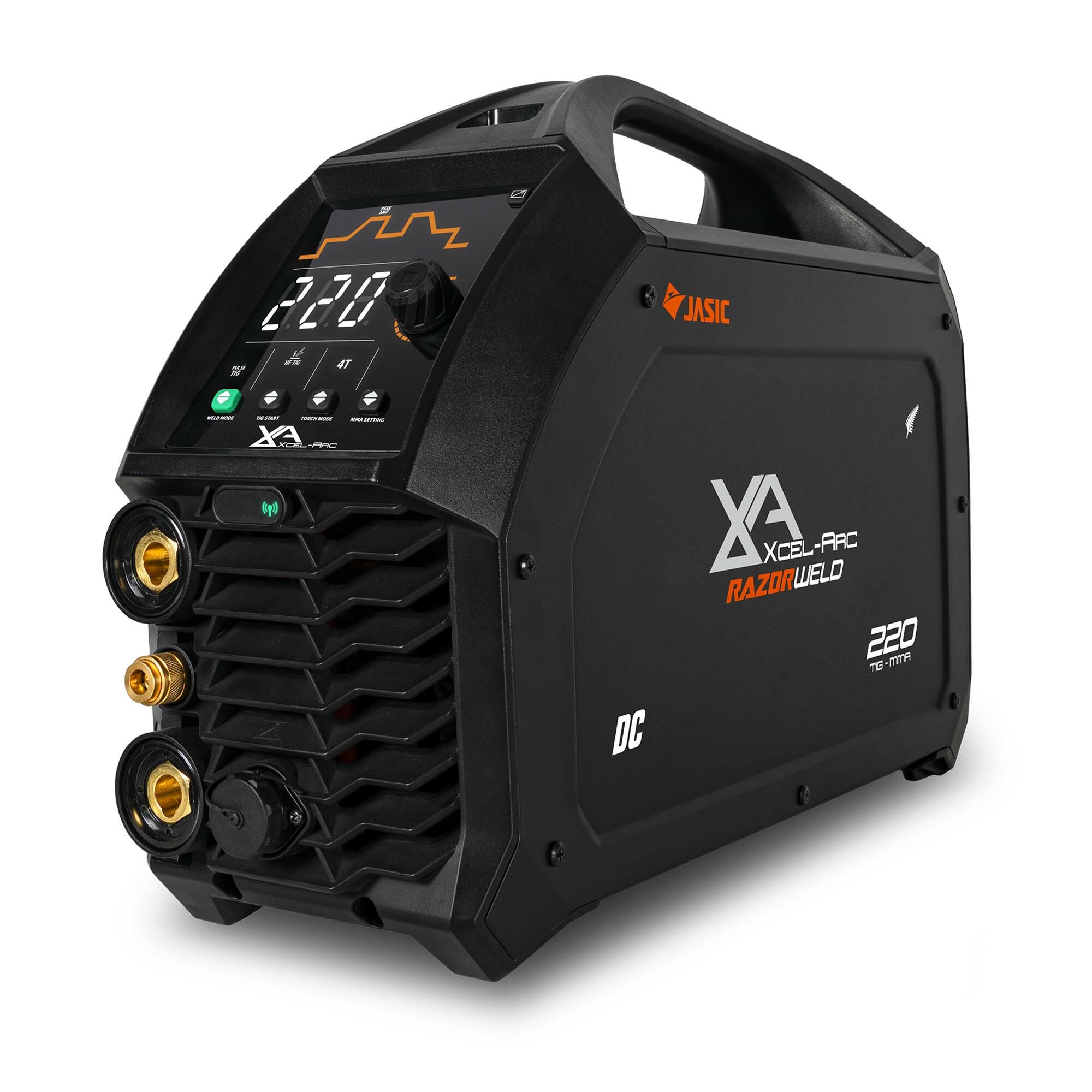

This professional-grade DC TIG welder gives you incredible results from start to finish on every weld.

Get the full DC TIG welding cycling including all the pulse functions

With new PFC components, this machine can be run on a 10A plug

Connect a foot pedal to the machine for extra versatility and convenience

A 5-year warranty to reflect our confidence in this machine

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

Ieff (A)

9.8

RATED OUTPUT

5-220A

NO LOAD VOLTAGE (V)

68

PROTECTION CLASS

IP23S

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

9.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium / MMA: Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years)

5

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC HF TIG / DC Pulse

TIG WELDING CURRENT RANGE
5-220A

TIG DUTY CYCLE @ 40°C
20% @ 220A, 60% @ 127A, 100% @ 98A

TIG WELDING THICKNESS RANGE
1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-160A

STICK DUTY CYCLE @ 40°C

15% @ 160A, 60% @ 80A, 100% @ 62A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-10mm

Size & Weight

DIMENSIONS (mm)

310×150×460

WEIGHT (kg)

8.9kg

MACHINE FEATURES

VRD: Yes

FOOT CONTROL CONNECTION

YES

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

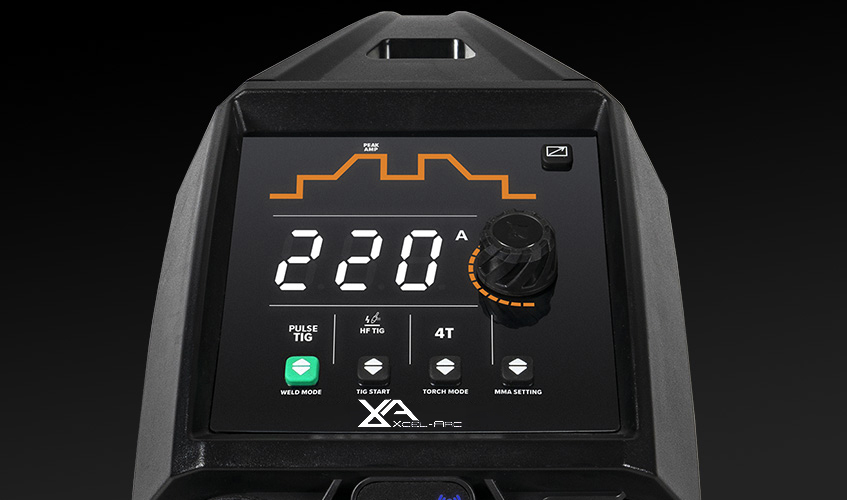

HD BACKLIT INTERFACE

This next generation interface panel is bright and easy to read in any environment.

PULSE TIG

Minimise the heat input without compromising on any of the penetration. Alternating between a peak and base current reduces the amount of heat input and focuses the arc, perfect for sheet metals and out-of-position welding.

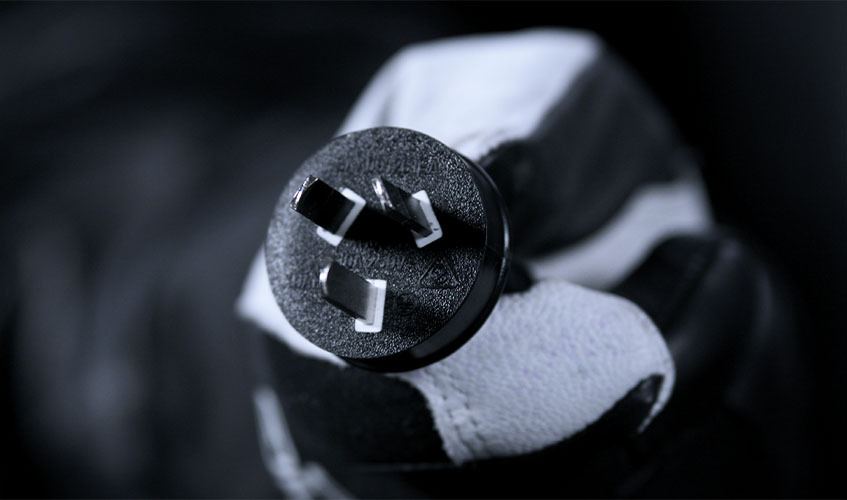

10A PLUG

A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.

HIGH-FREQUENCY TIG

Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters

Product Code: XA-RZTIG220PFC-T2
