Get incredible results from start to finish with this professional-grade TIG welder.

Effortlessly weld any metal with the high-frequency AC/DC TIG

The ultimate combination of AC and DC available with Mixed Arc settings

Switch your AC welds to suit your needs with the choice of three waveforms

A 5-year warranty to reflect our confidence in this machine

HD BACKLIT INTERFACE

This next generation interface panel is bright and easy to read in any environment.

PULSE TIG

Minimise the heat input without compromising on any of the penetration. Alternating between a peak and base current reduces the amount of heat input and focuses the arc, perfect for sheet metals and out-of-position welding.

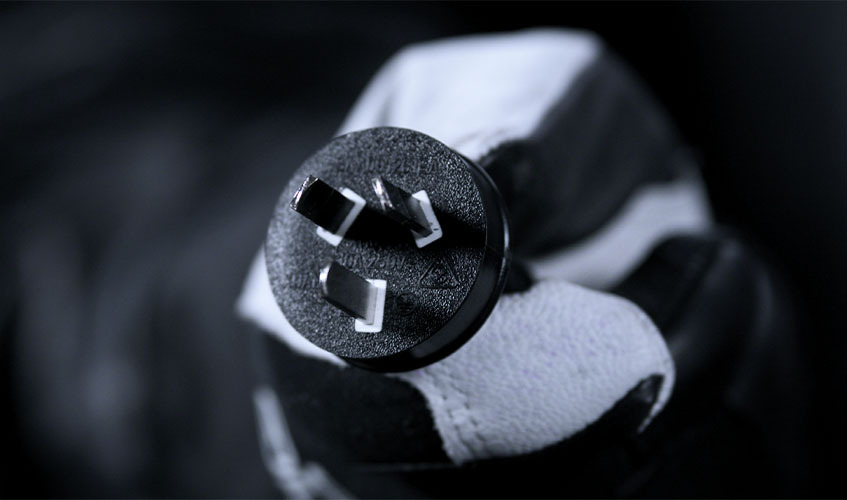

10A PLUG

A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.

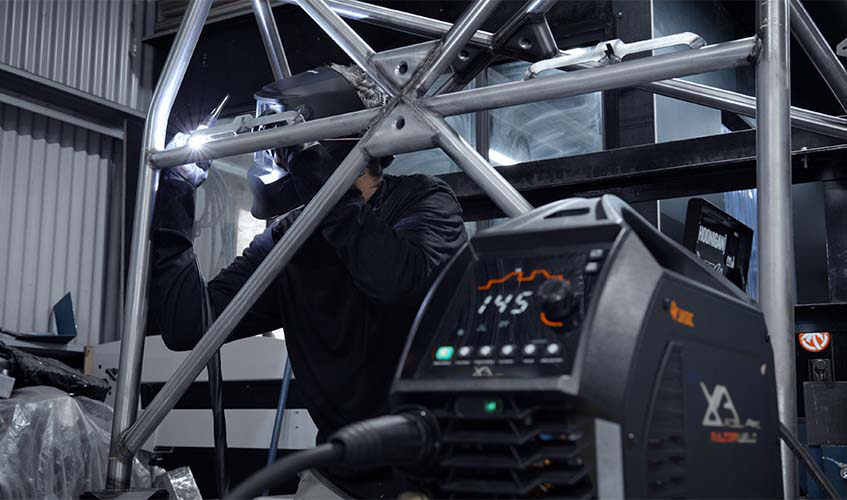

HIGH-FREQUENCY TIG

Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters

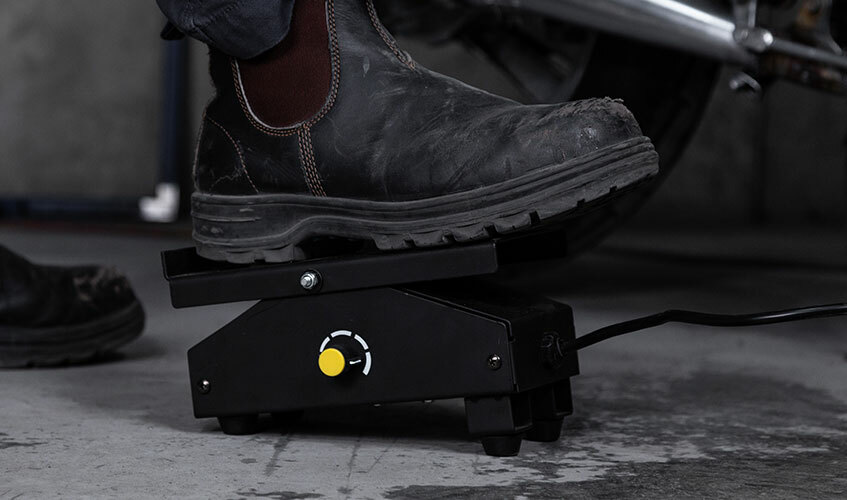

FOOT CONTROL READY

The perfect accessory, easily adjust your amperage to suit every weld as you go without disrupting your torch movement.

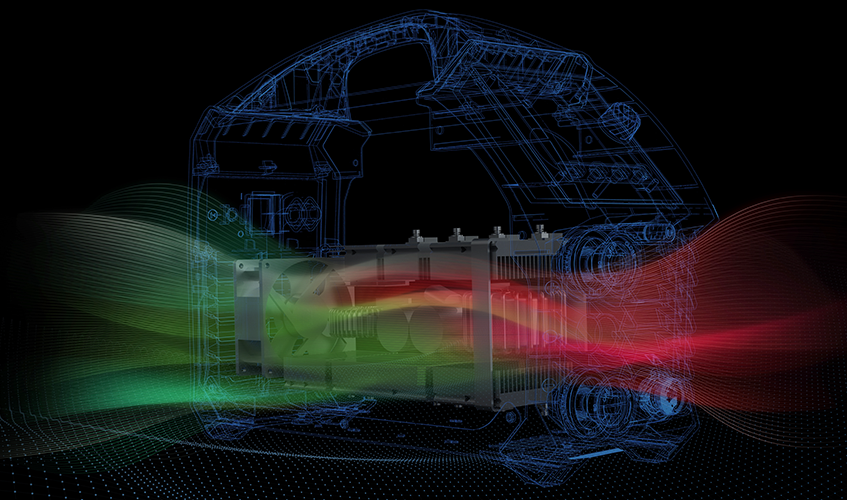

SMART FAN

Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.

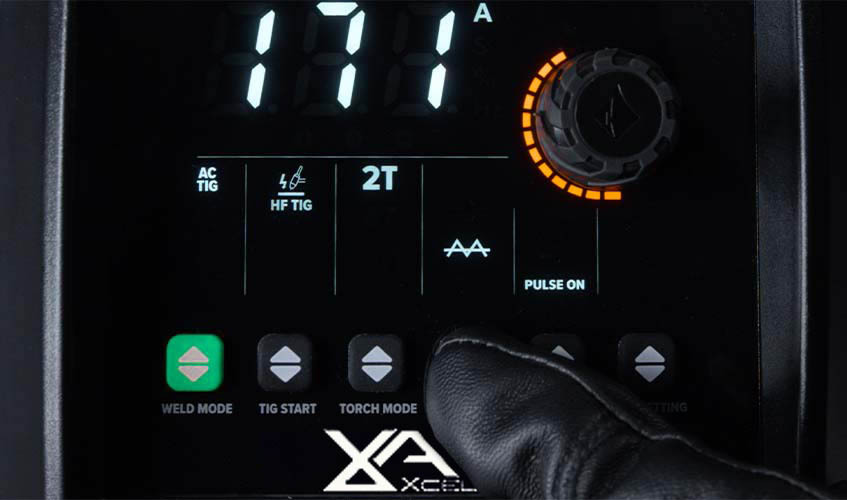

MULTIPLE AC WAVEFORMS

Completely customise your aluminium welds. Switch between Sine, Square, and Triangle waves to change the arc characteristics, bead profile, and penetration to suit your weld.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

Ieff (A)

9.5

RATED OUTPUT

5-200A

NO LOAD VOLTAGE (V)

65

PROTECTION CLASS

IP23S

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

9.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

TIG: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium / MMA: Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years) 5

TIG SPECIFICATIONS

TIG FUNCTION TYPE

AC/DC HF TIG & AC/DC Pulse

TIG WELDING CURRENT RANGE
5-200A

TIG DUTY CYCLE @ 40°C
20% @ 200A, 60% @ 115A, 100% @ 90A

TIG WELDING THICKNESS RANGE
1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-160A

STICK DUTY CYCLE @ 40°C

15% @ 160A, 60% @ 80A, 100% @ 62A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-10mm

SIZE & WEIGHT

DIMENSIONS (mm)

500×170×340mm

WEIGHT (kg)

11.7kg

MACHINE FEATURES

VRD: Yes

FOOT CONTROL CONNECTION: YES

THERMAL OVERLOAD PROTECTION: Over Temperature Warning

Product Code: XA-RZTIG200ACDCPFC-T3
