This heavy-duty workshop unit guarantees premium welds and unmatched performance, even in the most challenging conditions.

• A separate wire feeder gives extra manoeuvrability
• Push-Pull gun ready for heavy-duty welding
• 4 geared wire drive system for the smoothest wire feeding experience

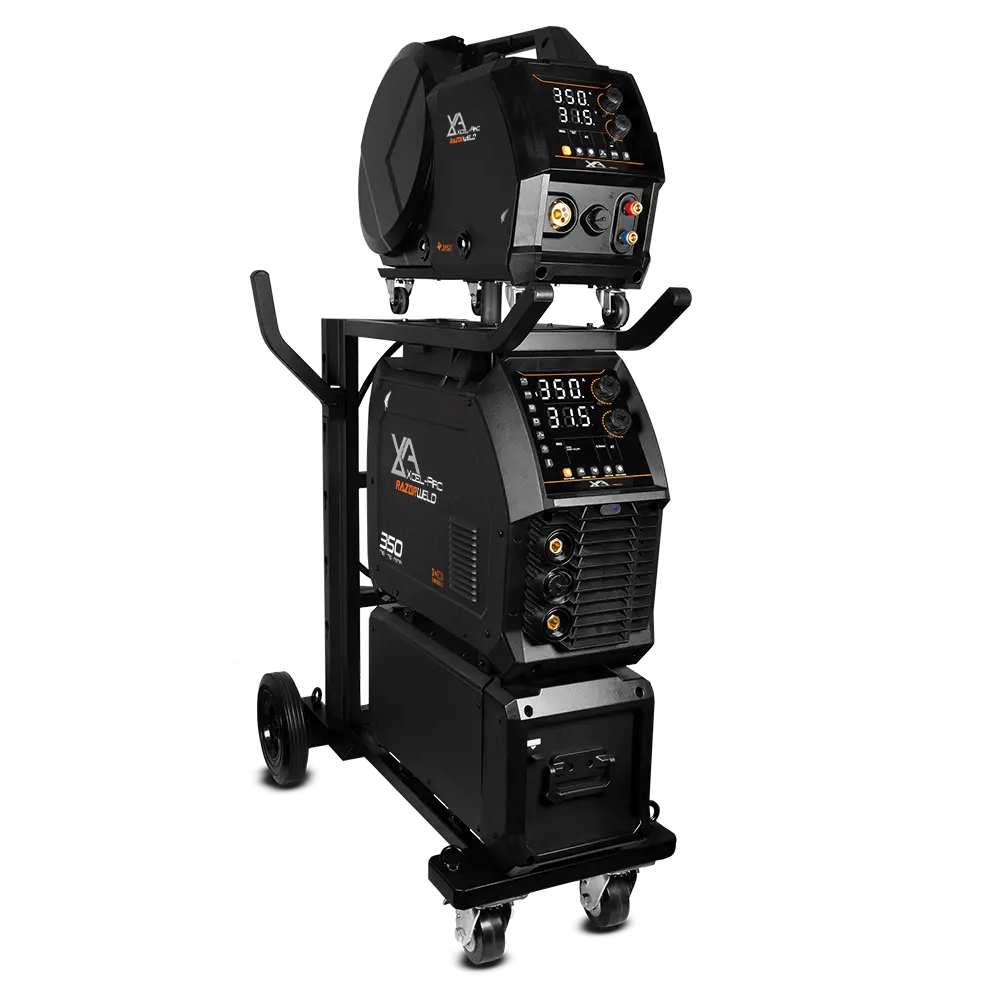

SEPARATE WIRE FEEDER

This machine includes a Separate Wire Feeder unit with the added benefit of being able to remove the wire feeder from the power source up to a distance of 10m. This is perfect for workshops when moving a complete machine isn’t an option.

MULTI PROCESS WELDING

This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.

FOUR GEARED WIRE DRIVE

This machine features a four geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.

SPOOL GUN READY

This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.

PUSH-PULL READY

Push-Pull Guns provide the smoothest wire speed, especially when MIG welding Aluminium. The ‘Pull’ motor in the torch allows the wire to be fed over a much longer distance, giving you more flexibility to move and manoeuvre whilst MIG welding.

HIGHEST QUALITY WELDS

Offering nothing but the best, this machine has been designed to offer the highest quality welds available from Xcel-Arc. With superior welding technology, no corners have been cut to make this machine the most powerful in its class.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE: 415V Three Phase

SUPPLY PLUG: 32 AMP

Ieff (A): 13.9

Imax (A): 25.0

NO LOAD VOLTAGE (V): 75

PROTECTION CLASS: IP23S

INSULATION CLASS: H

MINIMUM GENERATOR (kVA): 23.0

DINSE CONNECTOR: 35/50

STANDARD: AS/NZ60974-1

SUITABLE MATERIAL: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)5

MIG Specifications

MIG WELDING CURRENT RANGE

30-350A

MIG DUTY CYCLE @ 40°C

50% @ 350A | 60% @ 319A | 100% @ 247A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

1-16mm

DRIVE ROLLER SIZE

37/24

TIG SPECIFICATIONS

TIG FUNCTION TYPE: DC Lift Arc

TIG WELDING CURRENT RANGE: 20-350A

TIG DUTY CYCLE @ 40°C: 50% @ 350A | 60% @ 319A | 100% @ 247A

TIG WELDING THICKNESS RANGE: 1-10mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE: 20-350A

STICK DUTY CYCLE @ 40°C: 50% @ 350A | 60% @ 319A | 100% @ 247A

STICK ELECTRODE RANGE: 2.5-4.0mm

STICK WELDING THICKNESS RANGE: 2-16mm

Size & Weight

DIMENSIONS (mm) 1520 x 520 x 980mm

WEIGHT (kg) 43.4

SWF WEIGHT (kg) 17.8

SWF INTERLOCKING CABLE LENGTH (m) 10m

MACHINE FEATURES

WIRE DRIVE Seperate 4 Geared

SPOOL GUN CONNECTION: Yes

PUSH / PULL GUN CONNECTION: Yes

BURNBACK ADJUSTMENT: Automatic

WIRE INCH: Yes

INDUCTANCE CONTROL: Yes

THERMAL OVERLOAD PROTECTION: Over Temperature Warning

Product Code: XA-RZMIG350SWF-K
