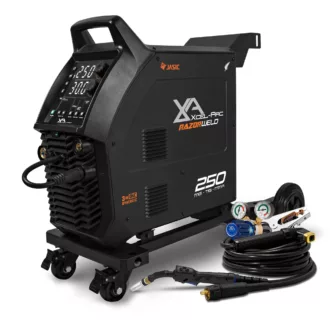

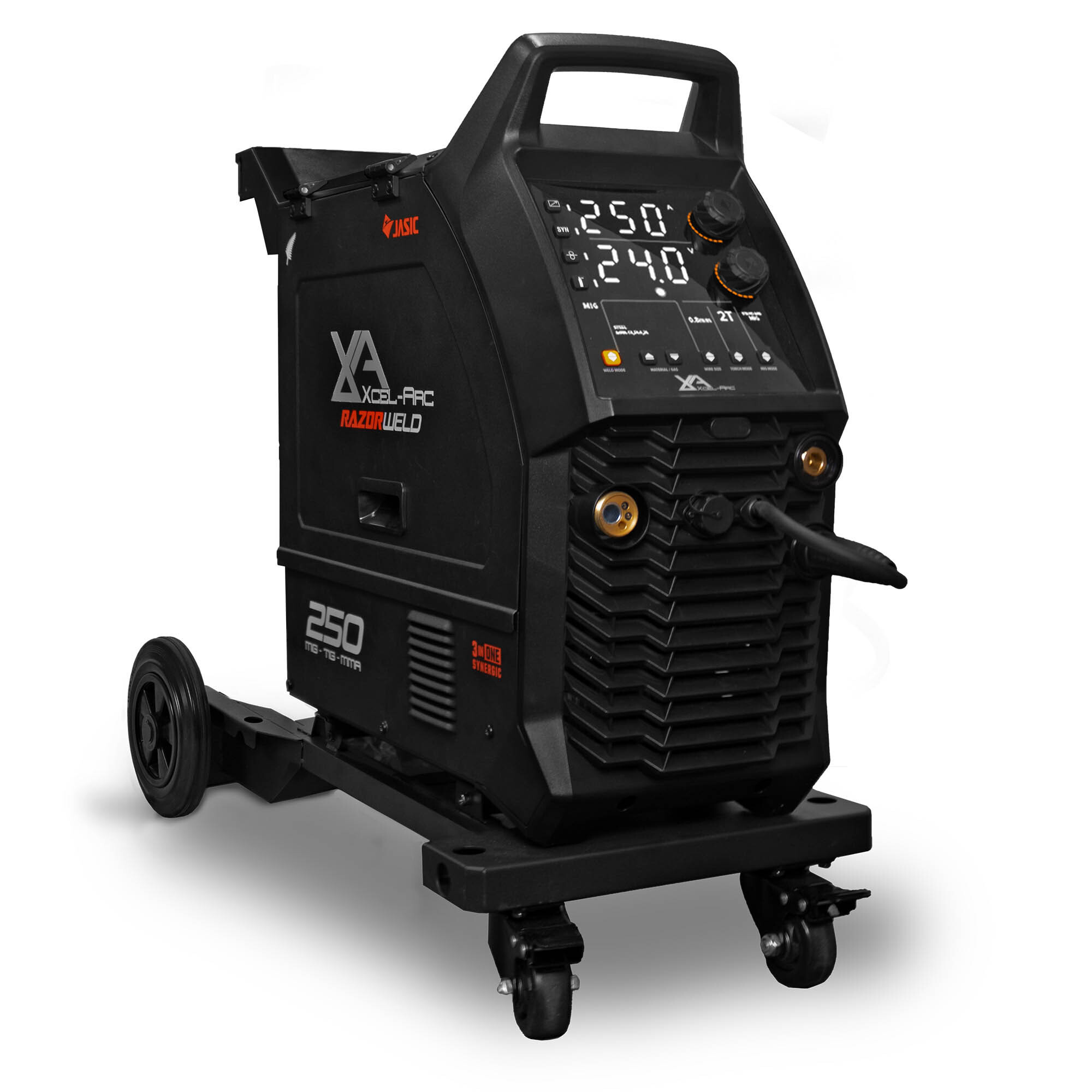

Get superior MIG, TIG & STICK performance even in the toughest conditions with the professional machine in a compact case.

Quick and easy setup with synergic MIG programs

Spool gun and Push-Pull gun compatible for the best aluminium welds

4-geared wire drive system for the ultimate wire feeding experience

A 5-year warranty to reflect our confidence in this machine

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG: 15 AMP

Ieff (A): 15

RATED OUTPUT

30A/15.5V - 250A/26.5V

NO LOAD VOLTAGE (V)

65

PROTECTION CLASS

IP23S

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

11.0

DINSE CONNECTOR

35/50

STANDARD: AS/NZ60974-1

SUITABLE MATERIAL

MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze / MMA: Mild Steel, Stainless Steel, Cast Iron / TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze"

WARRANTY (Years): 5

MIG Specifications

MIG WELDING CURRENT RANGE

30-250A

MIG DUTY CYCLE @ 40°C

20% @ 250A / 60% @ 144A / 100% @ 112A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

1-12mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

Trigger Controlled DC Lift Arc

IG WELDING CURRENT RANGE
5-250A

TIG DUTY CYCLE @ 40°C
20% @ 250A / 60% @ 144A / 100% @ 112A

TIG WELDING THICKNESS RANGE
1-10mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-220A

STICK DUTY CYCLE @ 40°C

20% @ 220A / 60% @ 127A / 100% @ 98A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

Size & Weight

DIMENSIONS (mm)

900×480×760

WEIGHT (kg)

41.3kg

MACHINE FEATURES

WIRE DRIVE

4 Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

PUSH / PULL GUN CONNECTION

Yes

FOOT CONTROL CONNECTION

Yes (TIG)

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Yes

Product Code: XA-RZMIG250WPFC-K
