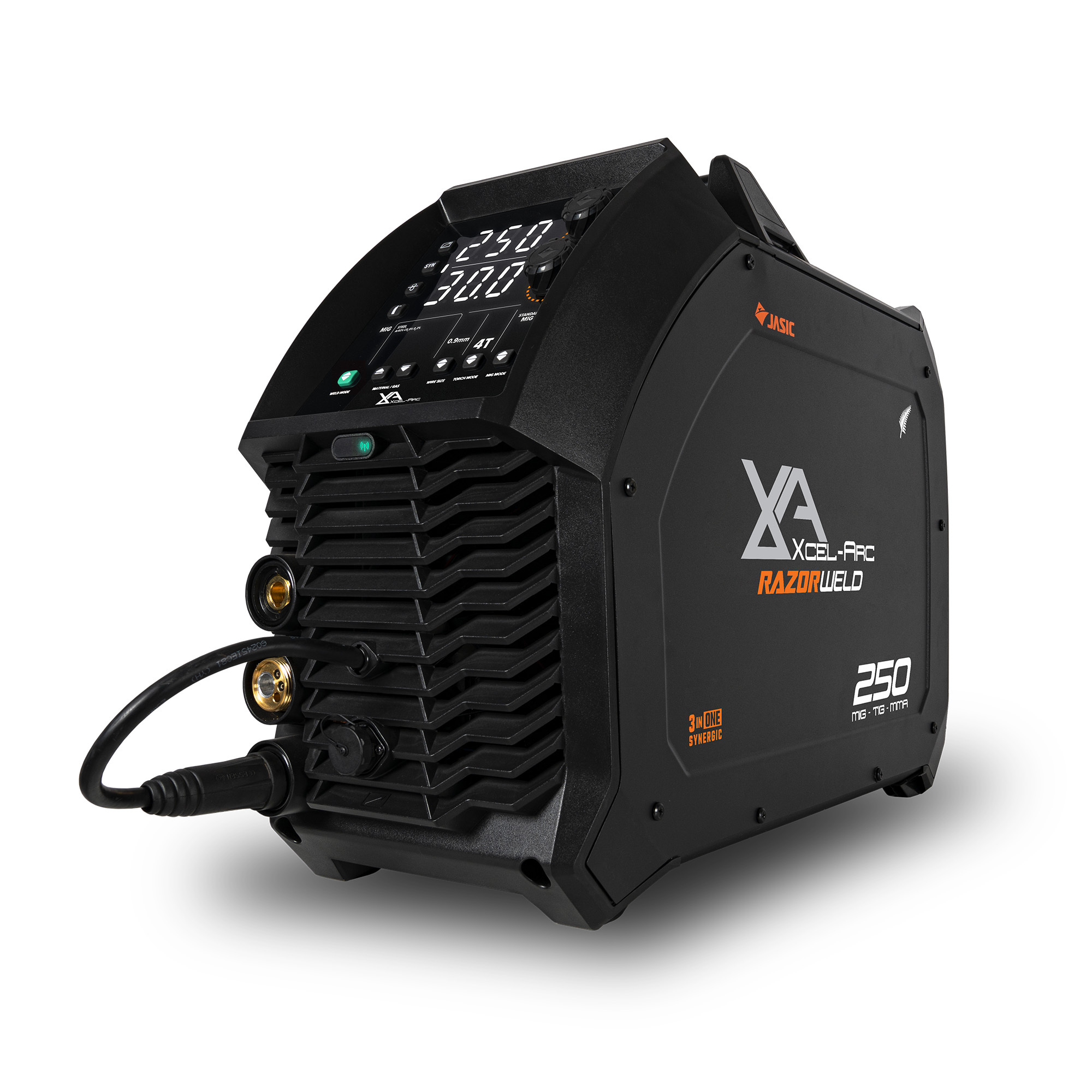

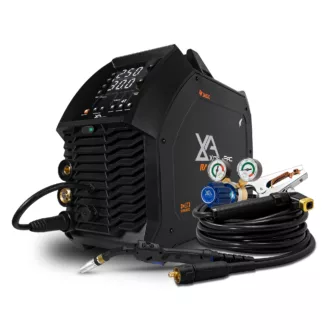

Get powerful MIG, TIG & STICK performance on your worksite or in your workshop with the professional machine packaged in a portable case.

Quick and easy setup with synergic MIG programs

Spool gun ready for the best aluminium welds

4 geared wire drive system for the ultimate wire feeding experience

A 5-year warranty to reflect our confidence in this machine

MULTI PROCESS WELDING

This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.

4 GEARED WIRE DRIVE

This machine features a geared roller drive unit, providing consistent and smooth wire feed. This also assists with using longer MIG Torches.

SPOOL GUN READY

This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

15.0

Ieff (A)

28.0

RATED OUTPUT

30A/15.5V - 250A/26.5V

NO LOAD VOLTAGE (V)

65

PROTECTION CLASS

IP23S

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

11.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze / MMA: Mild Steel, Stainless Steel, Cast Iron / TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze

WARRANTY (Years)

5

MIG Specifications

MIG WELDING CURRENT RANGE

30-250A

MIG DUTY CYCLE @ 40°C

20% @ 250A / 60% @ 144A / 100% @ 112A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

1-9mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE
Trigger Controlled DC Lift Arc

TIG WELDING CURRENT RANGE:5-250A

TIG DUTY CYCLE @ 40°C

20% @ 250A / 60% @ 144A / 100% @ 112A

TIG WELDING THICKNESS RANGE

1-9mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-250A

STICK DUTY CYCLE @ 40°C

20% @ 220A / 60% @ 127A / 100% @ 98A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

Size & Weight

DIMENSIONS (mm)

700x280x551mm

WEIGHT (kg)

25.5

MACHINE FEATURES

WIRE DRIVE: Geared

VRD: Yes

SPOOL GUN CONNECTION: Yes

PUSH / PULL GUN CONNECTION

No

FOOT CONTROL CONNECTION: Yes

BURNBACK ADJUSTMENT: Yes

WIRE INCH: Yes

INDUCTANCE CONTROL: Yes

THERMAL OVERLOAD PROTECTION: Yes

Product Code: XA-RZMIG250PFC-K
