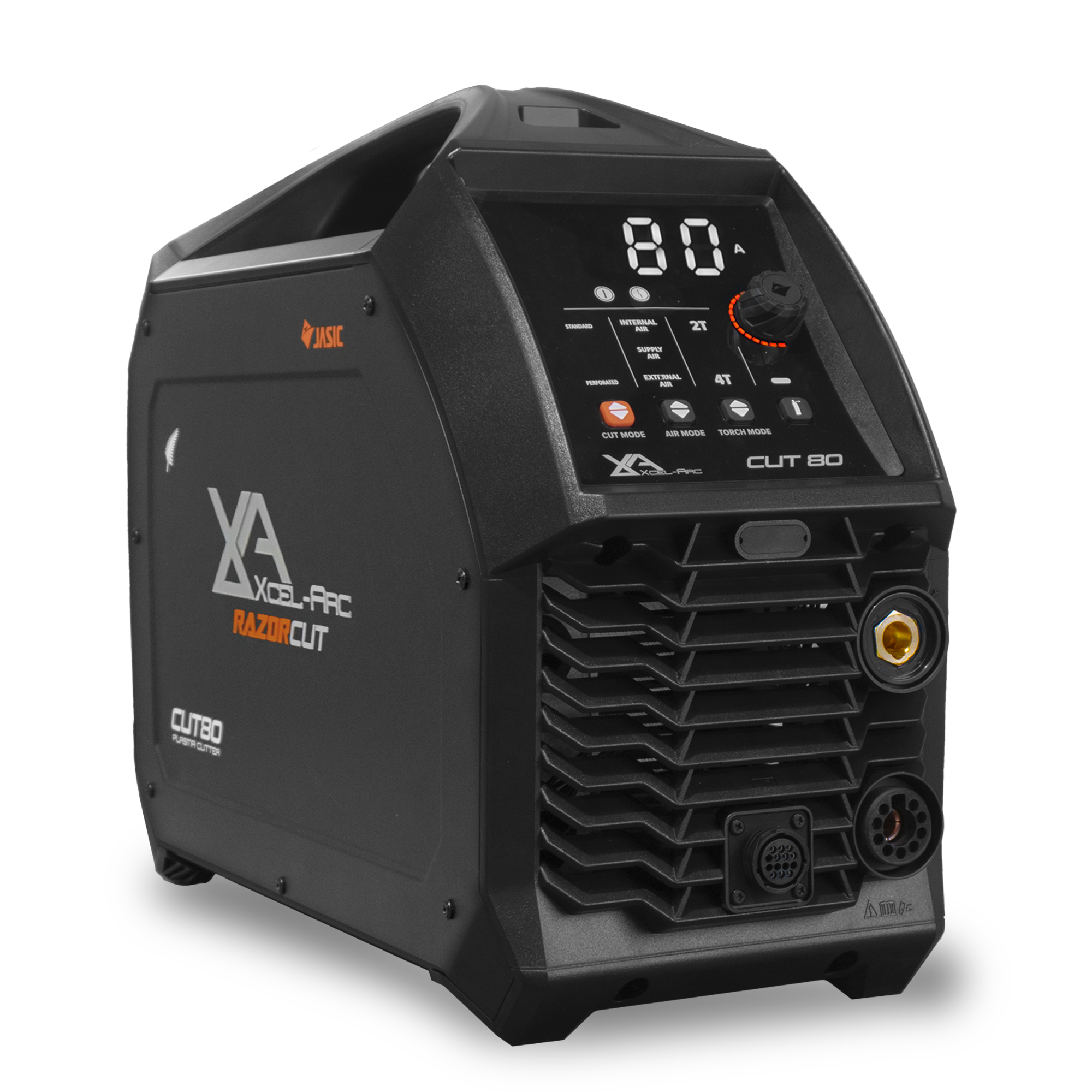

Get all the power you need with this professional-grade plasma cutter, perfect for the worksite or workshop.
30mm clean cuts and 35mm cutting capacity
The CNC connection means you can use this machine for every kind of plasma application
Cut anything with the perforated cut mode

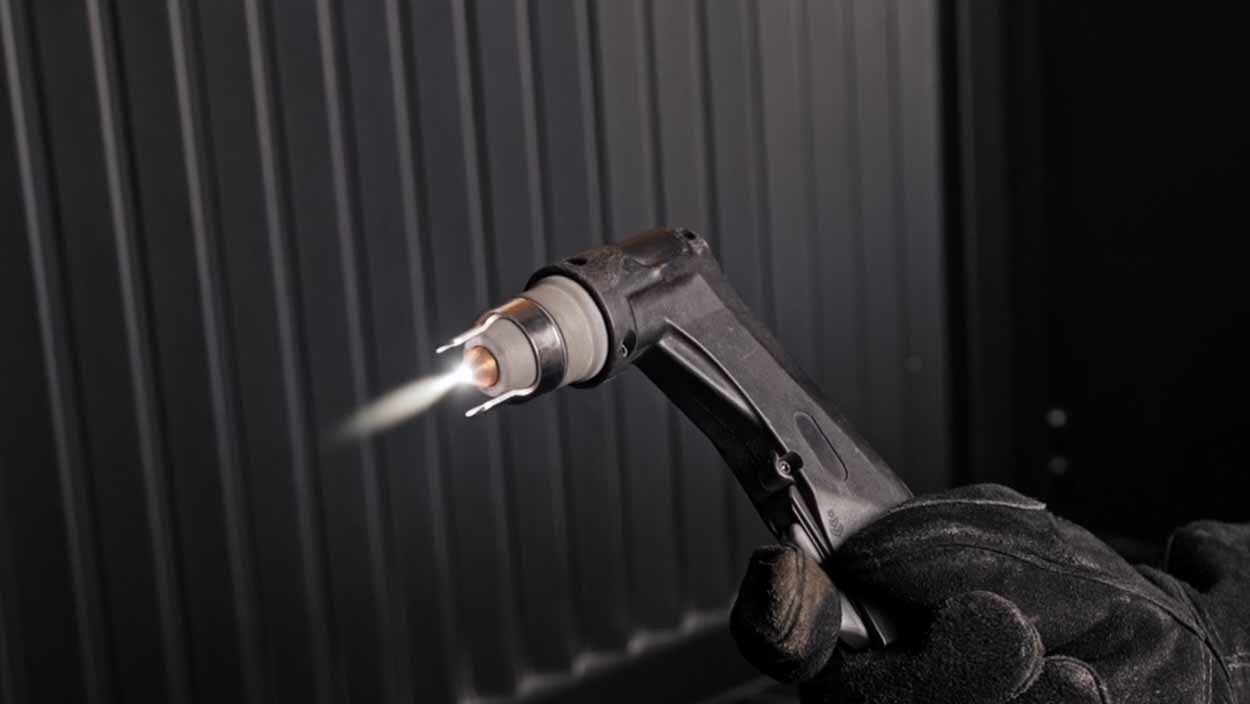

PILOT ARC START

Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.

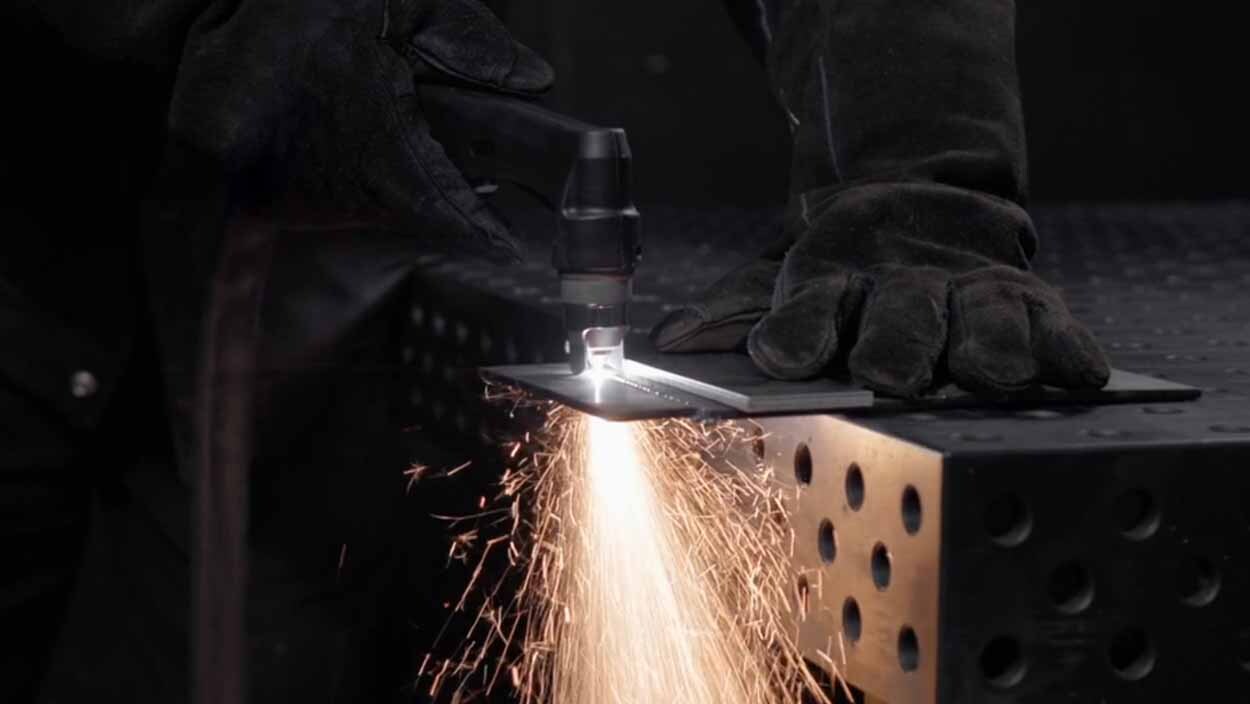

Cutting Capacity

Get a 25mm clean cut and a severance cut of 35mm on mild steel.

Get a 22mm clean cut and a severance cut of 30mm on stainless steel.

Get a 22mm clean cut and a severance cut of 30mm on aluminium.

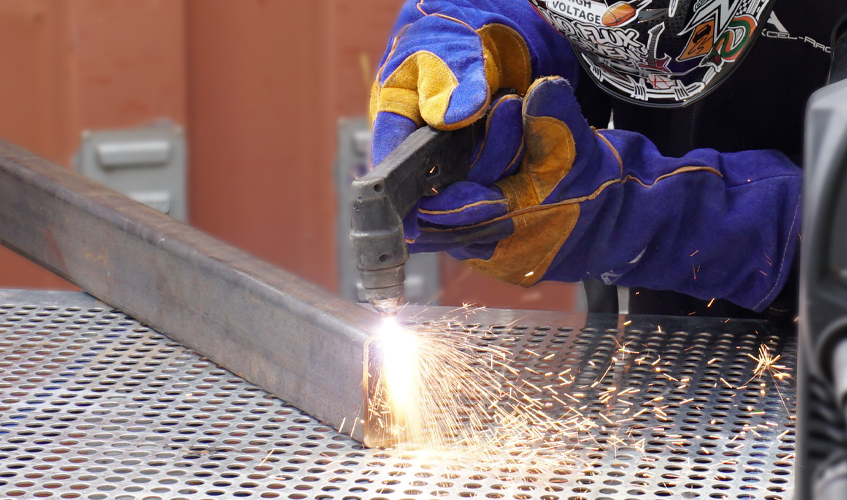

Pilot Arc Start

Start your arc on any surface: painted, greasy, or rusted, or don’t start on the surface at all. A pilot arc start will ignite the arc even from a short distance away, giving you better control and longer-lasting consumables.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE 415V Three Phase

SUPPLY PLUG No plug supplied (20 AMP Recommended)

Ieff (A) 13.0

Imax (A) 19.0

NO LOAD VOLTAGE (V) 325

PROTECTION CLASS IP23S

INSULATION CLASS H

MINIMUM GENERATOR (kVA) 22

DINSE CONNECTOR 35/50

STANDARD AS/NZ60974-1

WARRANTY (Years) 5

Size & Weight

DIMENSIONS (mm)
626x230x416mm
WEIGHT (kg)
22kg

PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE 20-80A

PLASMA CUT DUTY CYCLE @ 40°C 40% @ 80A | 60% @ 66A | 100% @ 51A

MILD STEEL CUT THICKNESS 30mm

MILD STEEL SEVERANCE THICKNESS 35mm

ALUMINIUM CUT THICKNESS 16mm

ALUMINIUM SEVERANCE THICKNESS 20mm

STAINLESS STEEL CUT THICKNESS 16mm

STAINLESS STEEL SEVERANCE THICKNESS 20mm

PLASMA ARC START Pilot Arc

MACHINE FEATURES

CNC CONNECTION

Yes
