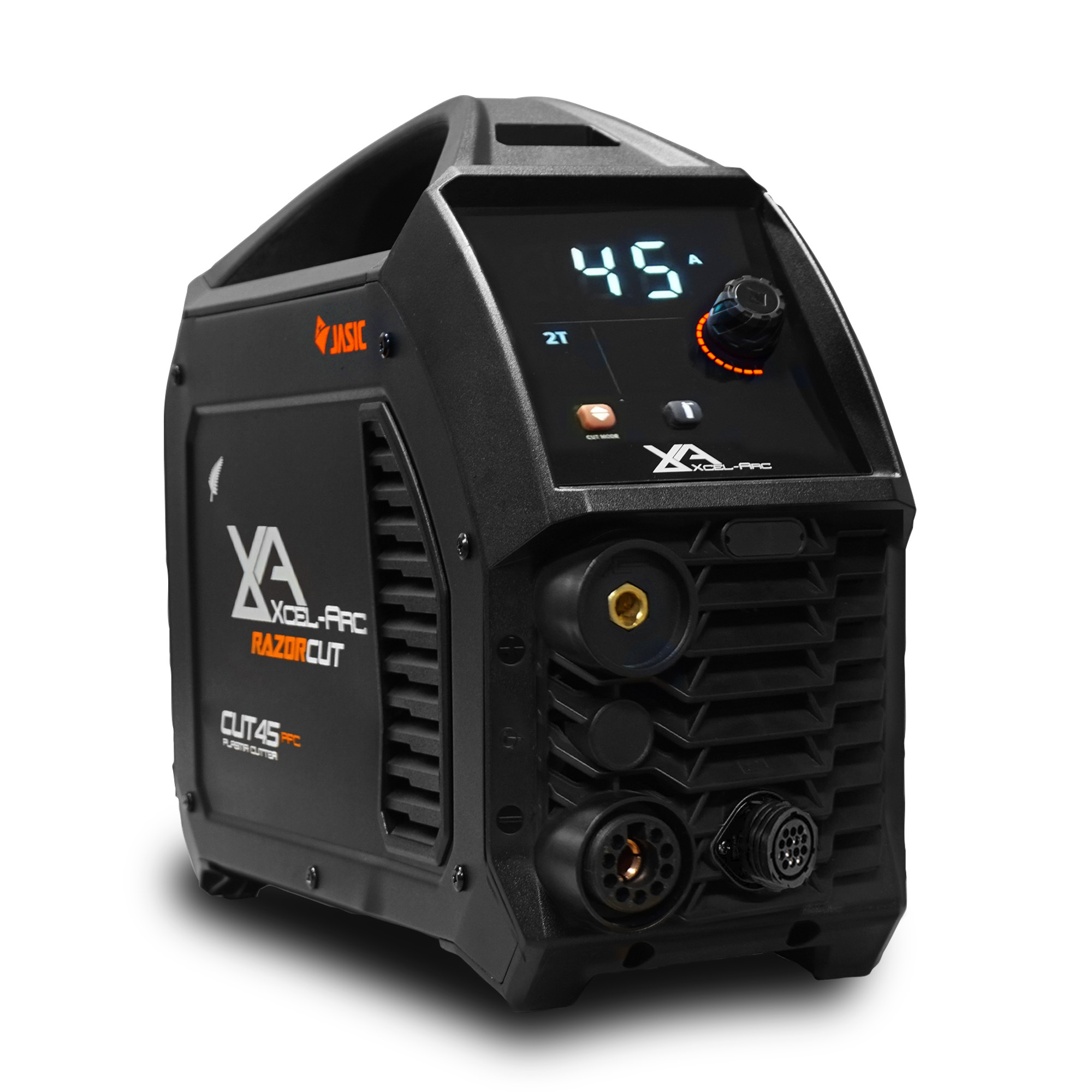

The RAZOR CUT45 CNC is a highly advanced digital inverter plasma cutter designed to deliver exceptional performance and precision. It offers adjustable cutting torch length and post-flow time, making it a versatile tool for a variety of applications. Its unique electrical structure and air duct design enhance heat dissipation, improving duty cycle and reliability. The machine offers three cutting modes, stepless adjustment of cutting current, intelligent fan temperature control, and automatic parameter saving. With a reset function the RAZOR CUT45 CNC is a reliable and efficient plasma cutting machine that is ideal for anyone looking for precision, versatility, and high-quality cutting.

15 AMP PLUG

Connect to any 15 AMP outlet.

16mm CLEAN CUT

Mild Steel.

PILOT ARC START

Start cut without direct contact.

2T/4T TORCH CONTROLS

More comfort when cutting.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

5.3

Ieff (A)

15

RATED OUTPUT

98V

PROTECTION CLASS: IP23S

INSULATION CLASS: H

MINIMUM GENERATOR (kVA): 6

DINSE CONNECTOR

10/25

STANDARD: AS/NZ60974-1

WARRANTY (Years) 5

Size & Weight

DIMENSIONS (mm)

546x166x341mm

WEIGHT (kg)

10kg

PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE

20-45A

PLASMA CUT DUTY CYCLE @ 40°C

25% @ 45A

MILD STEEL CUT THICKNESS

16mm

MILD STEEL SEVERANCE THICKNESS

25mm

ALUMINIUM CUT THICKNESS

8mm

ALUMINIUM SEVERANCE THICKNESS

10mm

STAINLESS STEEL CUT THICKNESS

8mm

STAINLESS STEEL SEVERANCE THICKNESS

10mm

AIR FLOW PRESSURE (Bar)

5.17 (75 psi)

PLASMA ARC START

Pilot Arc

MACHINE FEATURES

CNC CONNECTION

Yes

Product Code: XA-RZCUT45CNC-K
