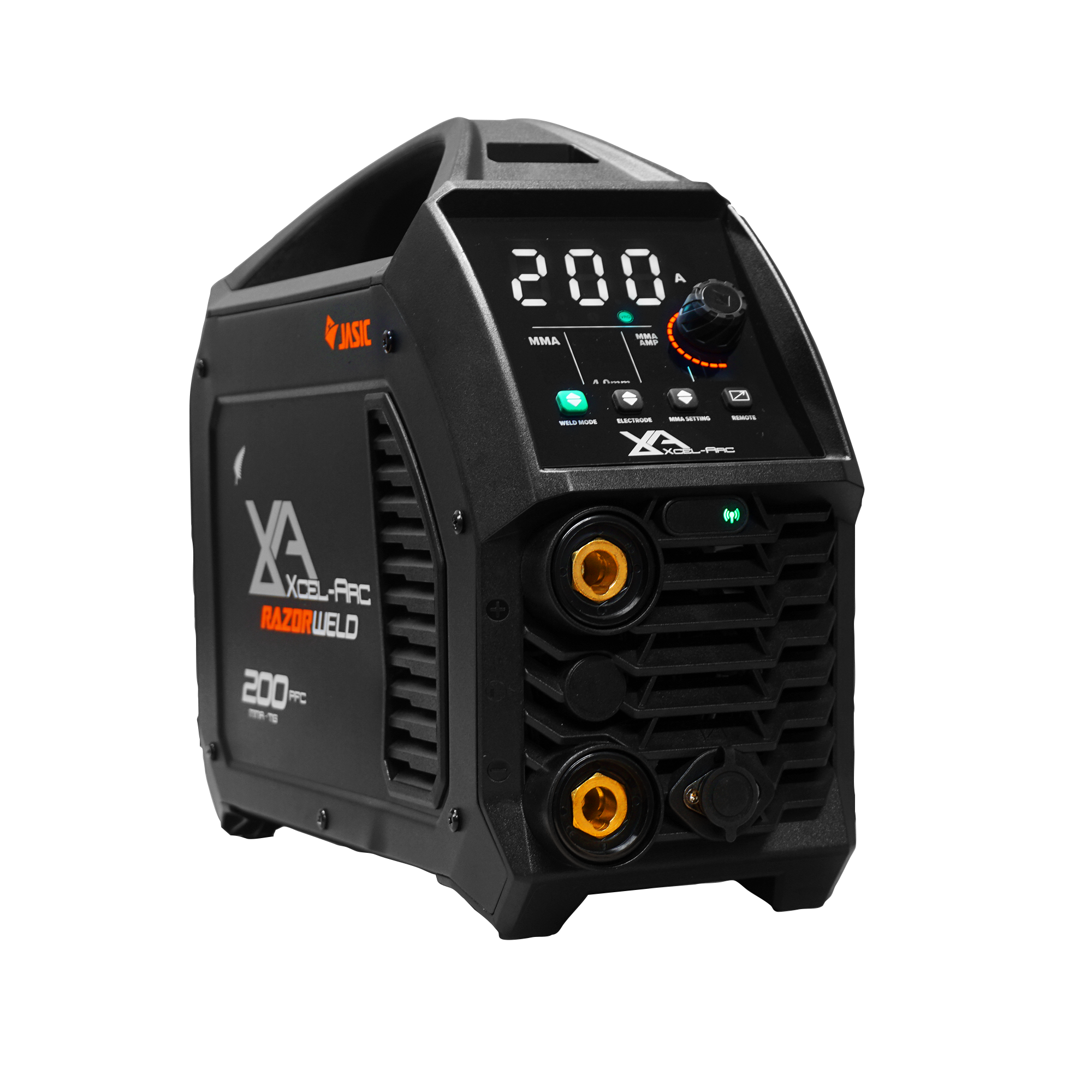

The New RAZORWELD™ ARC 200 PFC is the perfect MMA (STICK) and TIG welder for the professional welder wanting a powerful machine with a portable body.

This powerful, professional MMA (STICK) machine is designed to be taken on the worksite or the workshop.

• Packed full of advanced features including hot start, arc force and anti-stick
• PFC gives you maximum electrical efficiency
• Capable of DC Lift Arc TIG for more versatility
• A 5-year warranty to reflect our confidence in this machine

HD BACKLIT INTERFACE

This next generation interface panel is bright and easy to read in any environment

DC LIFT ARC TIG

Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the work piece and lifting it up to start the arc. This stops the tungsten tip sticking to the work piece and breaking the tip from the tungsten electrode.

POWER FACTOR CORRECTION

PFC gives you maximum electrical efficiency. It also automatically compensates for any voltage fluctuation.

SMART FAN

Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG: 15 AMP

Ieff (A): 14.9

RATED OUTPUT: 20A/20.8V - 200A/28V

NO LOAD VOLTAGE (V): 78

PROTECTION CLASS: IP23S

INSULATION CLASS: H

POWER FACTOR: 0.99

MINIMUM GENERATOR (kVA): 9.0

DINSE CONNECTOR: 35/50

STANDARD: AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years): 5

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-200A

TIG DUTY CYCLE @ 40°C

25% @ 200A

TIG WELDING THICKNESS RANGE

1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-200A

STICK DUTY CYCLE @ 40°C

25% @ 200A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

SIZE & WEIGHT

DIMENSIONS (mm)

413×150×311 mm

WEIGHT (kg)

7.6kg

MACHINE FEATURES

VRD: Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

Product Code: XA-RZARC200PFC-K
