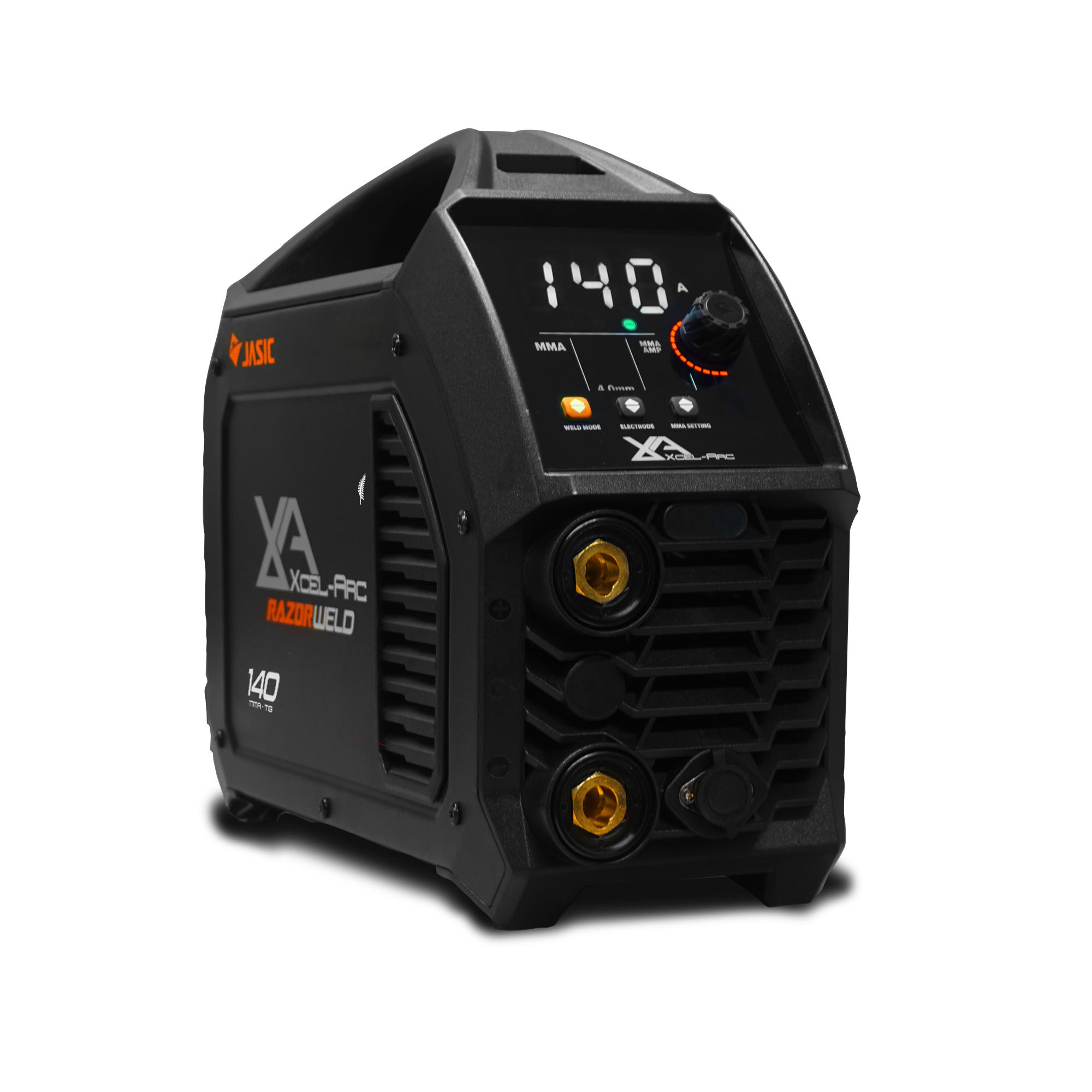

This powerful, professional STICK (MMA) machine is designed to be taken on the worksite or the workshop.

Packed full of advanced features including hot start, arc force and anti-stick

Capable of DC Lift Arc TIG for more versatility

A 5-year warranty to reflect our confidence in this machine

DC LIFT ARC TIG

Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the work piece and lifting it up to start the arc. This stops the tungsten tip sticking to the work piece and breaking the tip from the tungsten electrode.

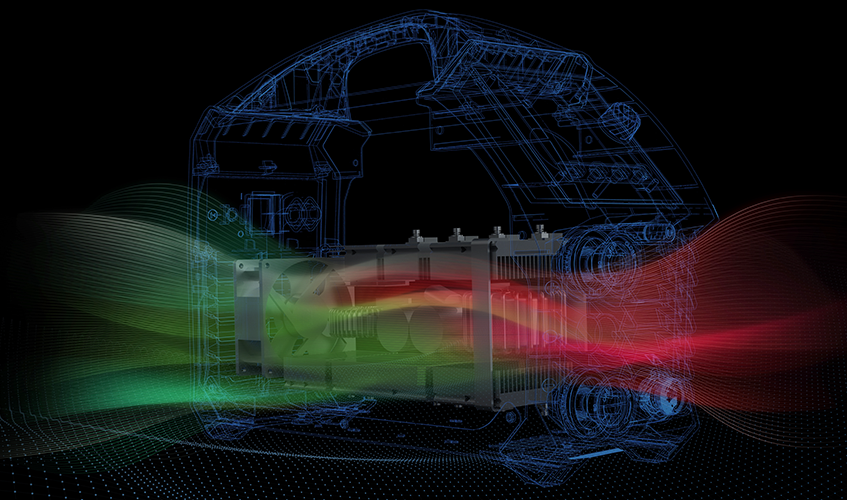

Smart Fan

Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

Ieff (A)

9.7

RATED OUTPUT

20A/20.8V - 140A/25.6V

NO LOAD VOLTAGE (V)

78

PROTECTION CLASS

IP23S

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

8.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Copper, Silicon Bronze

WARRANTY (Years: 5)

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE
10-180A

TIG DUTY CYCLE @ 40°C
20% @ 140A, 60% @ 80.8A, 100% @ 62.6A

TIG WELDING THICKNESS RANGE
1-5mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-180A

STICK DUTY CYCLE @ 40°C

20% @ 180A, 60% @ 104A, 100% @ 81A

STICK ELECTRODE RANGE

2.5-3.2mm

STICK WELDING THICKNESS RANGE

2-5mm

Size & Weight

DIMENSIONS (mm)

370x255x125mm

WEIGHT (kg)

5.5kg

MACHINE FEATURES

VRD

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

Product Code: XA-RZARC140-K
