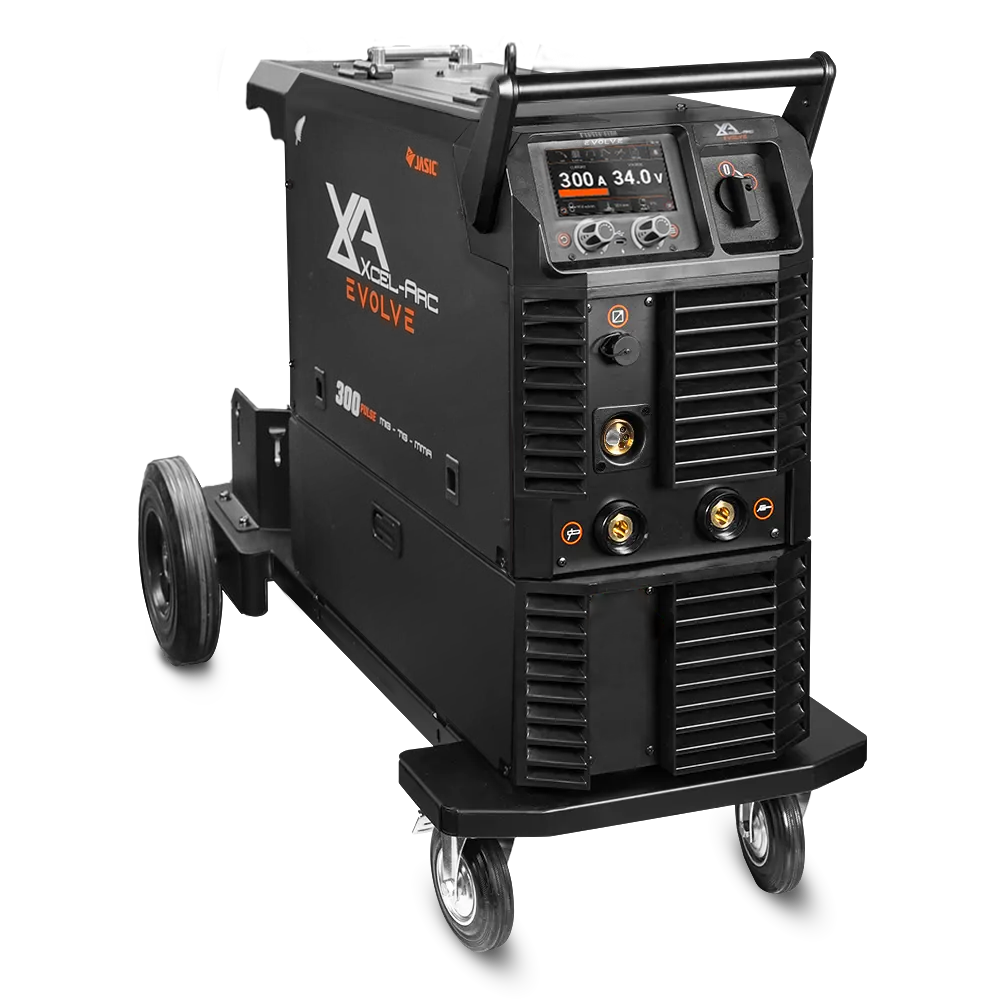

Packed full of revolutionary technologies, futureproof your workshop with our all-new Xcel-Arc EVOLVE PULSE MIG300 Trolley Package.

Complete with single and double pulse MIG programs

Get a full range of additional modular accessories, including AC/DC TIG and Separate Wire Feeder unit

Comes packaged with a trolley

NOT ALL PULSE MACHINES ARE EQUAL

No spatter. Less heat. Same penetration. Streamline your welds with the single and double pulse functions.

100+ SMART-SET MIG PROGAMS

Getting set up for a weld has never been faster with over 100 synergic programs. Simply select your metal type, wire size, gas type and material thickness, and the machine does the rest. It’ll pick the optimal settings for your weld.

4 Geared Wire Drive

The most consistent and smoothest wire-feeding experience there is. With a four geared wire drive unit, there’s more power pushing the wire, improving the wire-feeding, especially with longer torches.

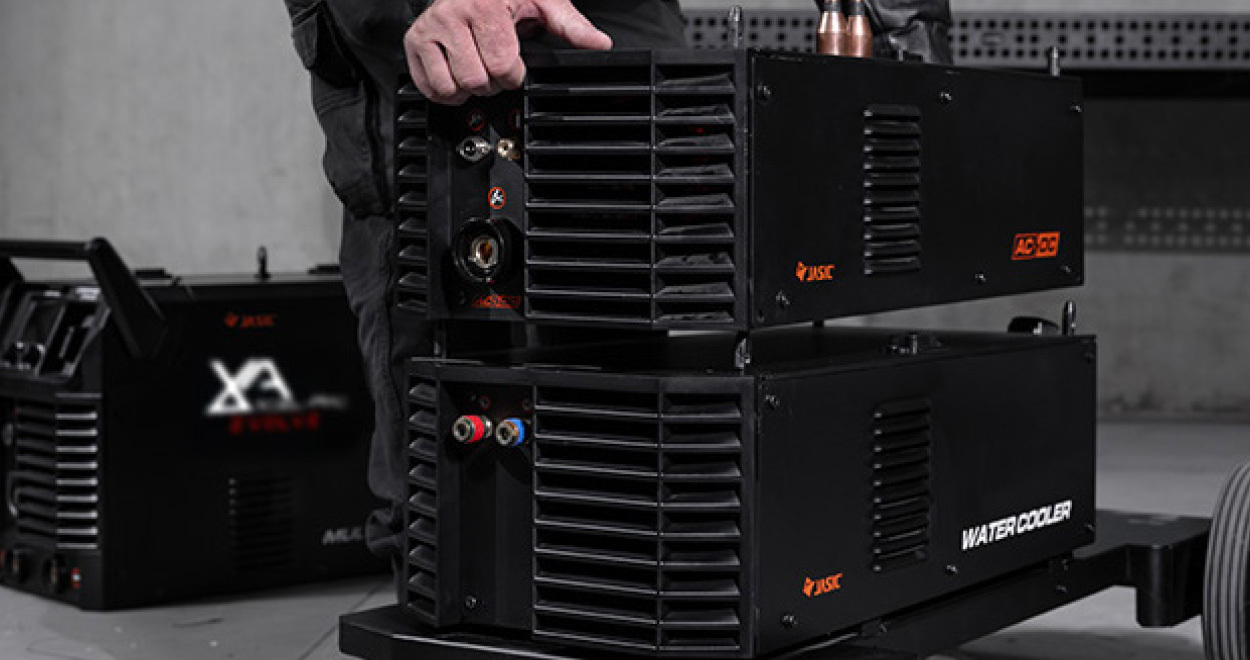

MODULAR ADD ONS

Futureproof your purchase with the EVOLVE 300 PULSE, with the option to add additional modules as you need them. These optional modules include a Separate Wire Feeder (SWF) module and an AC/DC TIG module for all your future needs.

PUSH-PULL READY

Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a ‘Pull’ motor built into the torch, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding.

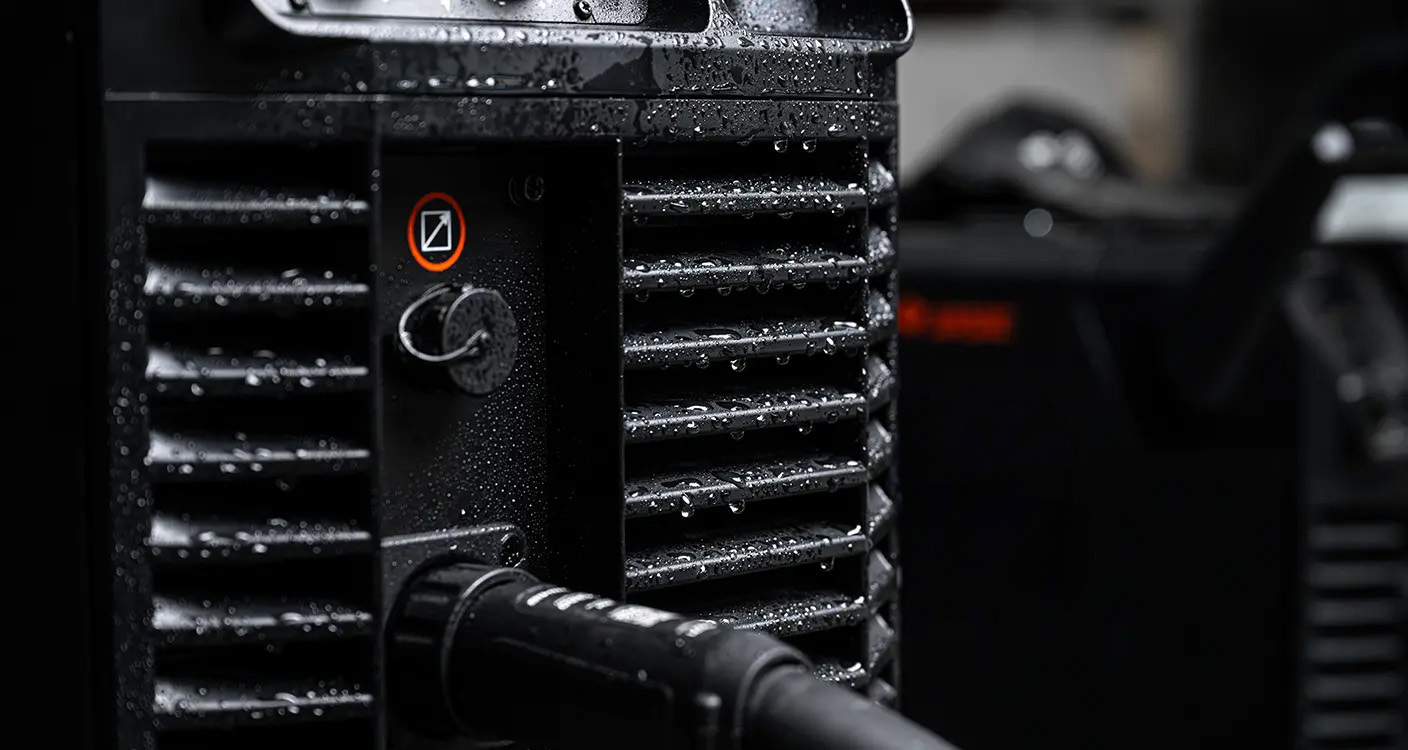

IP23S

Rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical while still.

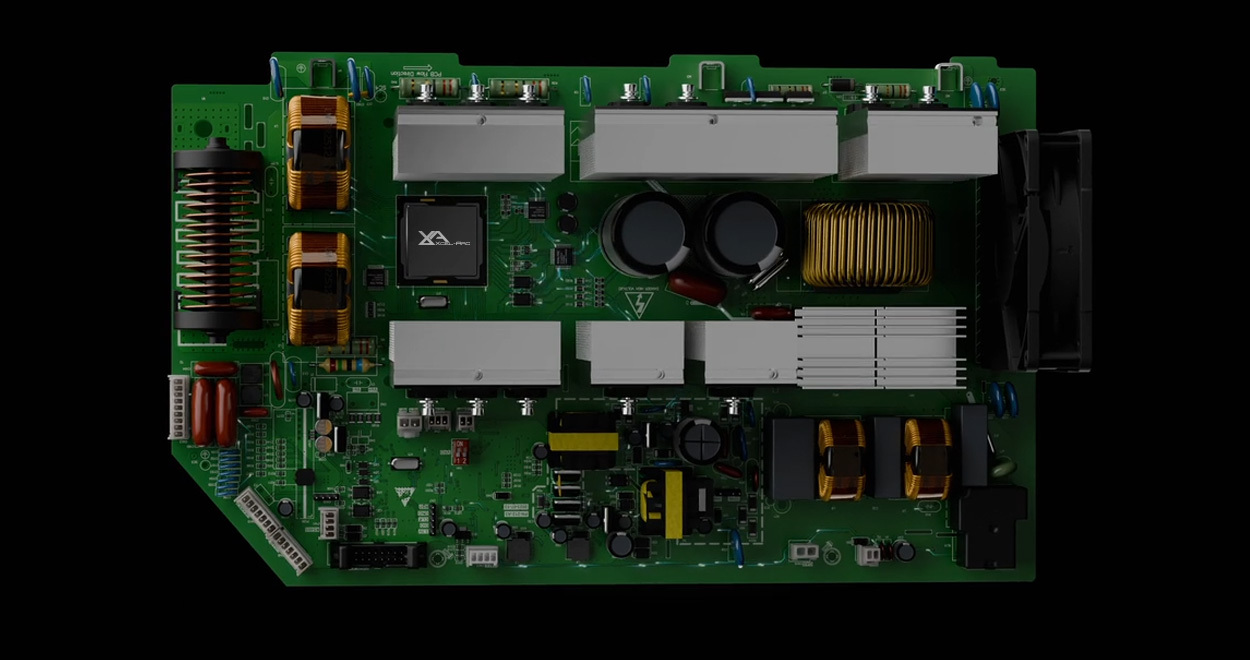

Inverter Technology

Not every inverter is made equal. With Xcel-Arc’s ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.

Advanced MMA Features

Advanced MMA features are designed for improving weld quality and ease of use.

Power Factor Correction (PFC)

Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single-Phase / 415V Three-Phase

SUPPLY PLUG

32 AMP

Ieff (A)

14.2 (Single-Phase) / 12.4 (Three-Phase)

Imax (A)

36.7A (240V Single-Phase) / 16.0A (415V Three-Phase)

RATED OUTPUT

20A-250A (240V Single-Phase) / 20A-300A (415V Three-Phase)

NO LOAD VOLTAGE (V)

70

PROTECTION CLASS

IP23S

INSULATION CLASS

H

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years) 5

MIG Specifications

MIG WELDING CURRENT RANGE

20-250A (Single-Phase) / 20-300A (Three Phase)

MIG DUTY CYCLE @ 40°C

15% @ 250A (Single-Phase) 60% @ 125A (Single-Phase) 100% @ 97A (Single-Phase) -- 60% @ 300A (Three-Phase) 100% @ 232A (Three-Phase)

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

0.6-20mm (Single Pass) >20mm (Multi Pass)

DRIVE ROLLER SIZE

30/22

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20A-200A (240V Single-Phase) / 20A-300A (415V Three-Phase)

STICK DUTY CYCLE @ 40°C

20% @ 200A (Single-Phase) 60% @ 115A (Single-Phase) 100% @ 89A (Single-Phase) -- 60% @ 300A (Three-Phase) 100% @ 232A (Three-Phase)

STICK ELECTRODE RANGE

1.6-4.0mm

STICK WELDING THICKNESS RANGE

2-10mm (Single Pass) >10mm (Multi Pass)

ARC FORCE

Adjustable

Size & Weight

DIMENSIONS (mm)

810x332x975mm

WEIGHT (kg)

44

MACHINE FEATURES

WIRE DRIVE

Seperate 4 Geared

VRD: Yes

PUSH / PULL GUN CONNECTION: Yes

BURNBACK ADJUSTMENT: Yes

WIRE INCH: Yes

INDUCTANCE CONTROL: Yes

CRATER CURRENT CONTROL: Yes

THERMAL OVERLOAD PROTECTION: Over Temperature Warning

HEATING ELEMENT FOR CO2 REG: Yes

Product Code: XA-MIG300EVP-K
