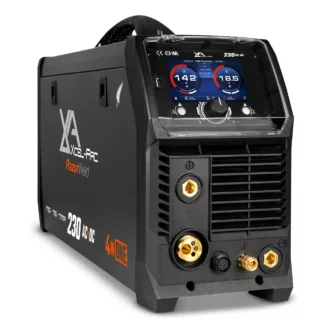

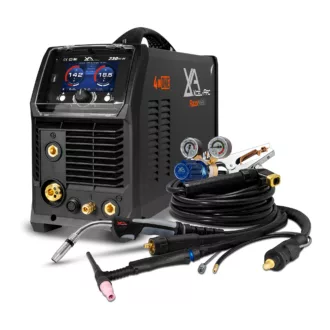

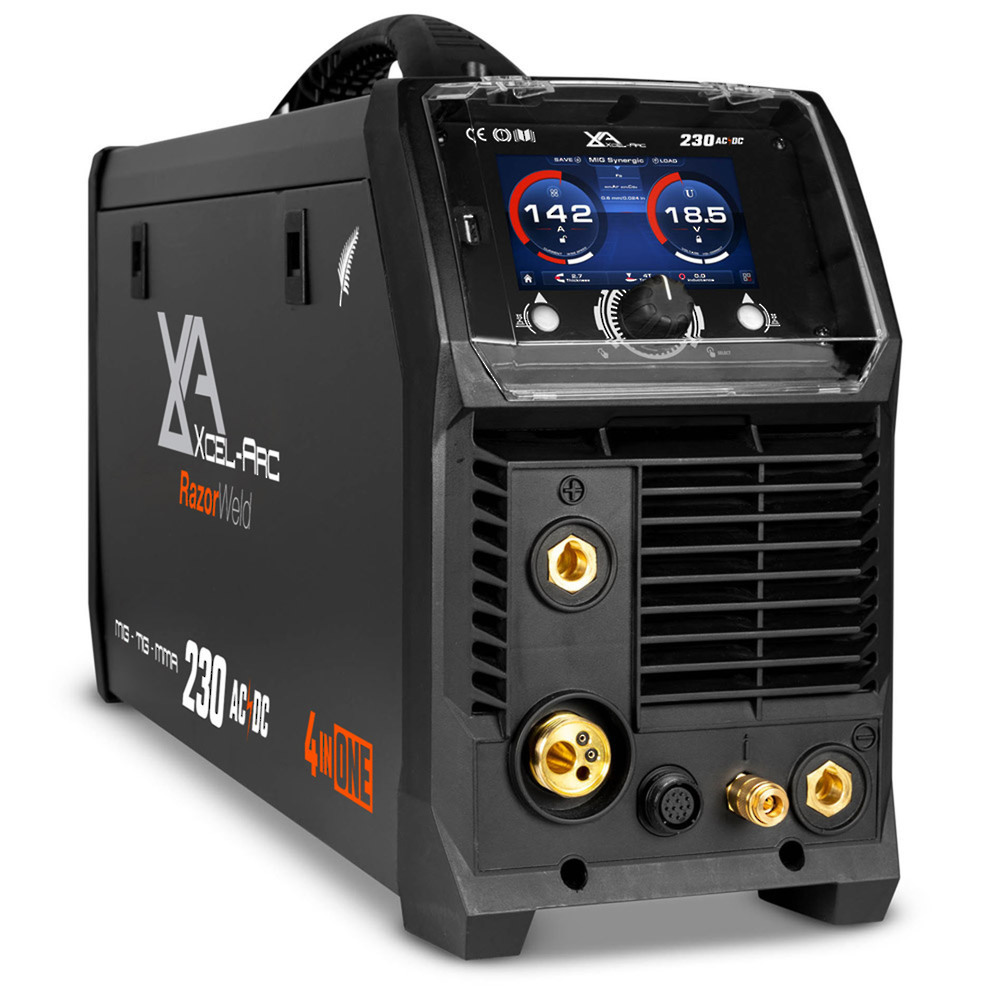

Our brand new RAZORWELD™ MULTI 230 AC/DC 4-in-1 is here. As the latest and greatest addition to our RAZORWELD line, this machine can do any kind of welding you need it to. MIG, High-Frequency AC & DC TIG, as well as STICK, no matter what you’ve got planned, the RAZOR MULTI 230 AC/DC can do it.

AC/DC High Frequency TIG

TIG weld aluminium without issues with AC. High-Frequency TIG (H/F TIG) gives you more control when starting or stopping the arc and reduces the risk of contaminating the tungsten or the weld.

PULSE MMA (STICK)

Pulse MMA (STICK) welding helps reduce spatter, improves heat control and allows for an easier removal of slag. It also improves the speed and efficiency of vertical up welds by eliminating the use of the “Christmas Tree” technique, while still maintaining root fusion.

Power Factor Correction (PFC)

PFC gives you maximum electrical efficiency and automatically compensates for any voltage fluctuation.

MIG Smart-Set

Setting up for a weld has never been easier, just set your wire, gas, joint type and material thickness and you’re ready to weld!

Complete MIG Weld Cycle Control

Get complete control over your MIG welds with a full set of adjustable parameters. It comes with the standard settings such as pre- and post-gas flow, arc ignition speed, and burnback. Plus it also includes more advanced features, like Arc Start and Crater Fill, for full control over the beginning and end of your welds.

Geared Wire Drive

This machine features a geared roller drive unit, providing consistent and smooth wire feed, and it helps when using longer MIG torches.

TIG Smart-Set

The easiest way to set up for a TIG weld, simply set your filler material, joint type and material thickness and you’re good to go!

Mix AC/DC

Mixed AC/DC welding is the combination of TIG AC and TIG DC- in one weld. Mixed AC/DC gives you faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

Ieff (A)

15

RATED OUTPUT

25A/15.3V-230A/25.5V (15A)

PROTECTION CLASS

IP21

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

10 (15A)

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years) 3

MIG Specifications

MIG WELDING CURRENT RANGE

25-230A (15A)

MIG DUTY CYCLE @ 40°C

25% @ 230A, 60% @ 187A, 100% @ 145A (15A)

MIG WIRE SIZE RANGE

0.6-1.0mm

MIG WIRE SPOOL SIZE

100mm / 200mm

MIG WELDING THICKNESS RANGE

1-7mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

AC/DC High-Frequency

TIG WELDING CURRENT RANGE

10-230A

TIG DUTY CYCLE @ 40°C
35% @ 230A, 60% @ 175A, 100% @ 136A

TIG WELDING THICKNESS RANGE
1-7mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-200A

STICK DUTY CYCLE @ 40°C

25% @ 200A, 60% @ 130A, 100% @ 100A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-10mm

ARC FORCE

0-100%

Size & Weight

DIMENSIONS (mm)

660x210x330mm

WEIGHT (kg)

20kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

FOOT CONTROL CONNECTION

Wireless

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

CRATER CURRENT CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Yes

Product Code: XA-MIG230RZMTS
