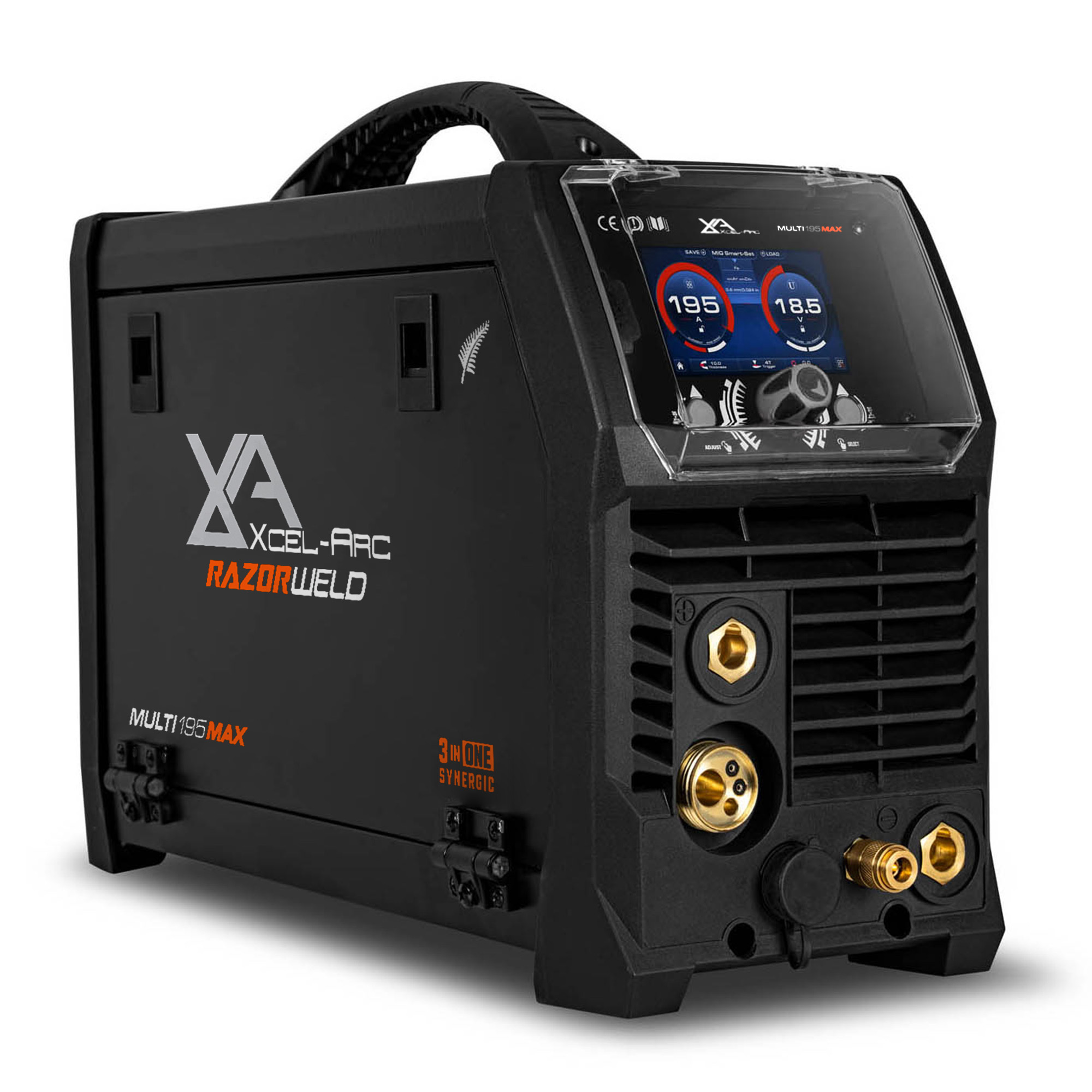

The RAZORWELD™ MULTI 195 MAX is now out, the latest addition to our RAZORWELD range. This 3-in-1 machine has been packed full of features so it can do just about everything, MIG, DC TIG and STICK, and all on a 10A plug. It comes loaded with complete, comprehensive synergic MIG and TIG programs, so setting up for your welds has never been quicker or easier.

DIGITAL GEARED WIRE DRIVE

Experience unparalleled accuracy with our all-new Digital Geared Wire Drive system. Designed to sustain a consistent arc in varying conditions and with different wire types, it ensures an accurate wire feed speed. With this system, achieving precision in every welding task is effortless.

Power Factor Correction (PFC)

Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.

10A Plug

Plug in and play. The 10A power plug can be used on any domestic outlet, so it’s perfect for the DIY home handyman or the professional welder looking to take it anywhere

DC High-Frequency TIG

Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters.

Complete MIG Weld Cycle Control

Get complete control over your MIG welds with a full set of adjustable parameters, such as pre- and post-gas flow, arc ignition speed, and burnback.

MIG Smart-Set

Setting up for a weld has never been easier, just set your joint type, filler wire, gas mixture, wire diameter, and material thickness and you’re ready to weld

TIG Smart-Set

The easiest way to set up for a TIG weld, simply set your material, joint type, tungsten diameter, plate thickness, and gas mixture and you’re good to go!

Pulse MMA

Pulse MMA (STICK) welding helps reduce spatter, improves heat control and allows for an easier removal of slag. It also improves the speed and efficiency of vertical up welds by eliminating the use of the “Christmas Tree” technique, while still maintaining root fusion.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

Ieff (A)

8.9

RATED OUTPUT

25A/15V - 195A/23.8V

NO LOAD VOLTAGE (V)

78

PROTECTION CLASS

IP21

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

8.5

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years)3

MIG Specifications

MIG WELDING CURRENT RANGE

25-195A

MIG DUTY CYCLE @ 40°C

15% @ 195A / 60% @ 98A / 100% @ 76A

MIG WIRE SIZE RANGE

0.6-1.0mm

MIG WIRE SPOOL SIZE

1kg / 5kg

MIG WELDING THICKNESS RANGE

1-6mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC High-Frequency

TIG WELDING CURRENT RANGE
5-195A

TIG DUTY CYCLE @ 40°C
30% @ 195A / 60% @ 138A / 100% @ 107A

TIG WELDING THICKNESS RANGE
1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

5-195A

STICK DUTY CYCLE @ 40°C

15% @ 195A / 60% @ 98A / 100% @ 76A

STICK ELECTRODE RANGE

2-4mm

STICK WELDING THICKNESS RANGE

2-10mm

Size & Weight

DIMENSIONS (mm): 470x190x350mm

WEIGHT (kg): 11.8kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD: Yes

SPOOL GUN CONNECTION: Yes

FOOT CONTROL CONNECTION: Yes

BURNBACK ADJUSTMENT: Yes

WIRE INCH: Yes

INDUCTANCE CONTROL: Yes

CRATER CURRENT CONTROL: Yes

THERMAL OVERLOAD PROTECTION Yes

Product Code: XA-MIG195RZMTS-K
