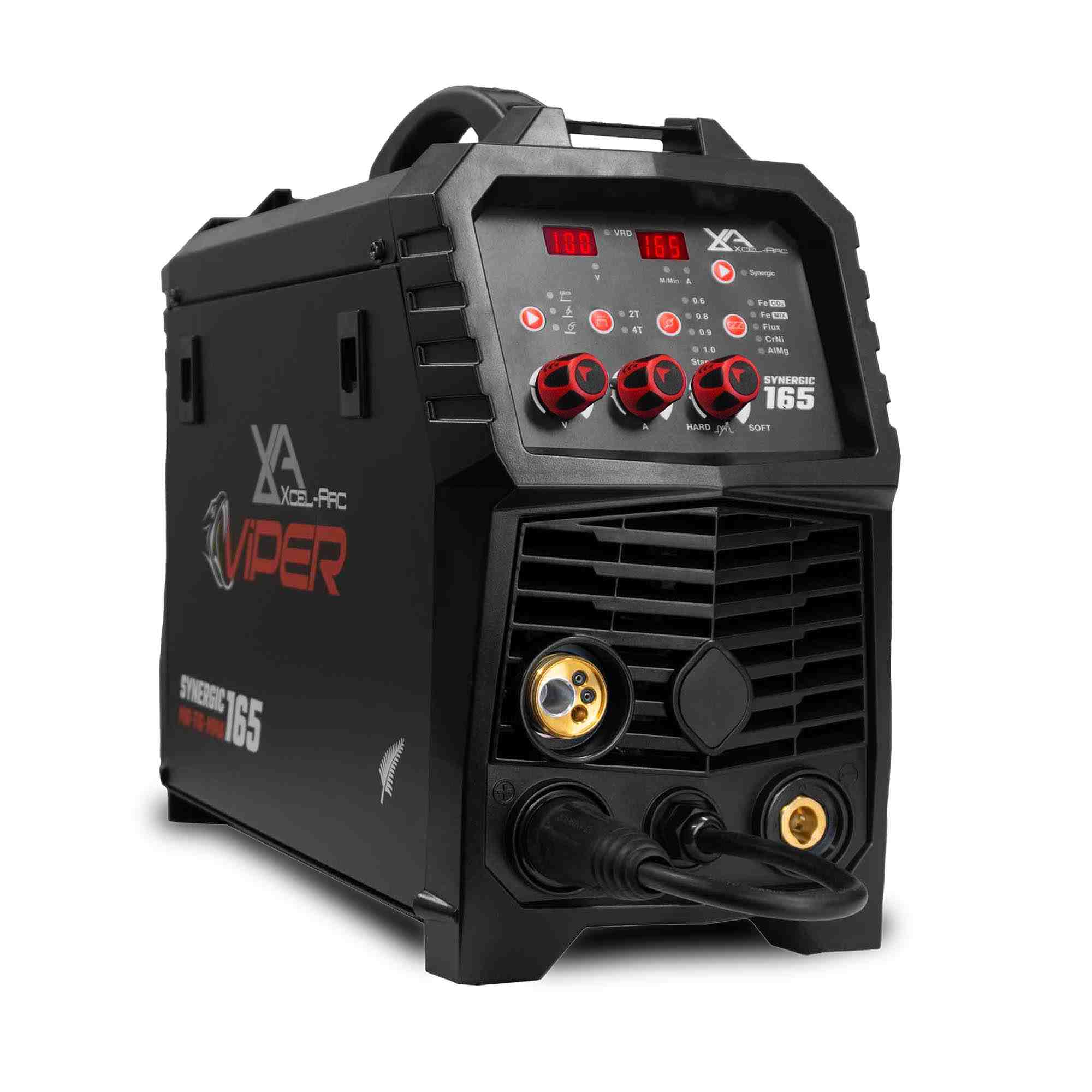

The VIPER™ 165 is the ultimate multi-process welder for the DIY enthusiast. MIG, TIG or STICK, the VIPER™ does it all, and it’s ready to go anywhere you have a standard 10-amp outlet. Get repairs done and see your projects come together in record time with the ability to change modes with the flick of a switch.

The VIPER™ 165 is the perfect solution for those looking for insane performance without needing to blow your budget on multiple welders.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE:  230V Single Phase

SUPPLY PLUG

10 AMP

RATED INPUT POWER (kVA)

5.9

Ieff (A)

9.8

PROTECTION CLASS

IP21S

INSULATION CLASS: H

POWER FACTOR:  0.72

DINSE CONNECTOR:  35/50

STANDARD:  AS/NZ60974-1

SUITABLE MATERIAL:  Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper

WARRANTY (Years) 2

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE: 30-165A

MIG DUTY CYCLE @ 40°C: 10% @ 165A

MIG WIRE SIZE RANGE:  0.6-0.9mm

MIG WIRE SPOOL SIZE:  1kg / 5kg

MIG WELDING THICKNESS RANGE:  1-10mm

DRIVE ROLLER SIZE:  30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE:  DC Lift Arc

TIG WELDING CURRENT RANGE:  20-160A

TIG DUTY CYCLE @ 40°C:  10% @ 160A

TIG WELDING THICKNESS RANGE:  1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE:  20-140A

STICK DUTY CYCLE @ 40°C:  10% @ 140A

STICK ELECTRODE RANGE:  2.5-4.0mm

STICK WELDING THICKNESS RANGE:  2-10mm

SIZE & WEIGHT

DIMENSIONS (mm):  500x210x385mm

WEIGHT (kg):  10kg

MACHINE FEATURES

WIRE DRIVE

Geared

Product Code: XA-MIG165V-K
