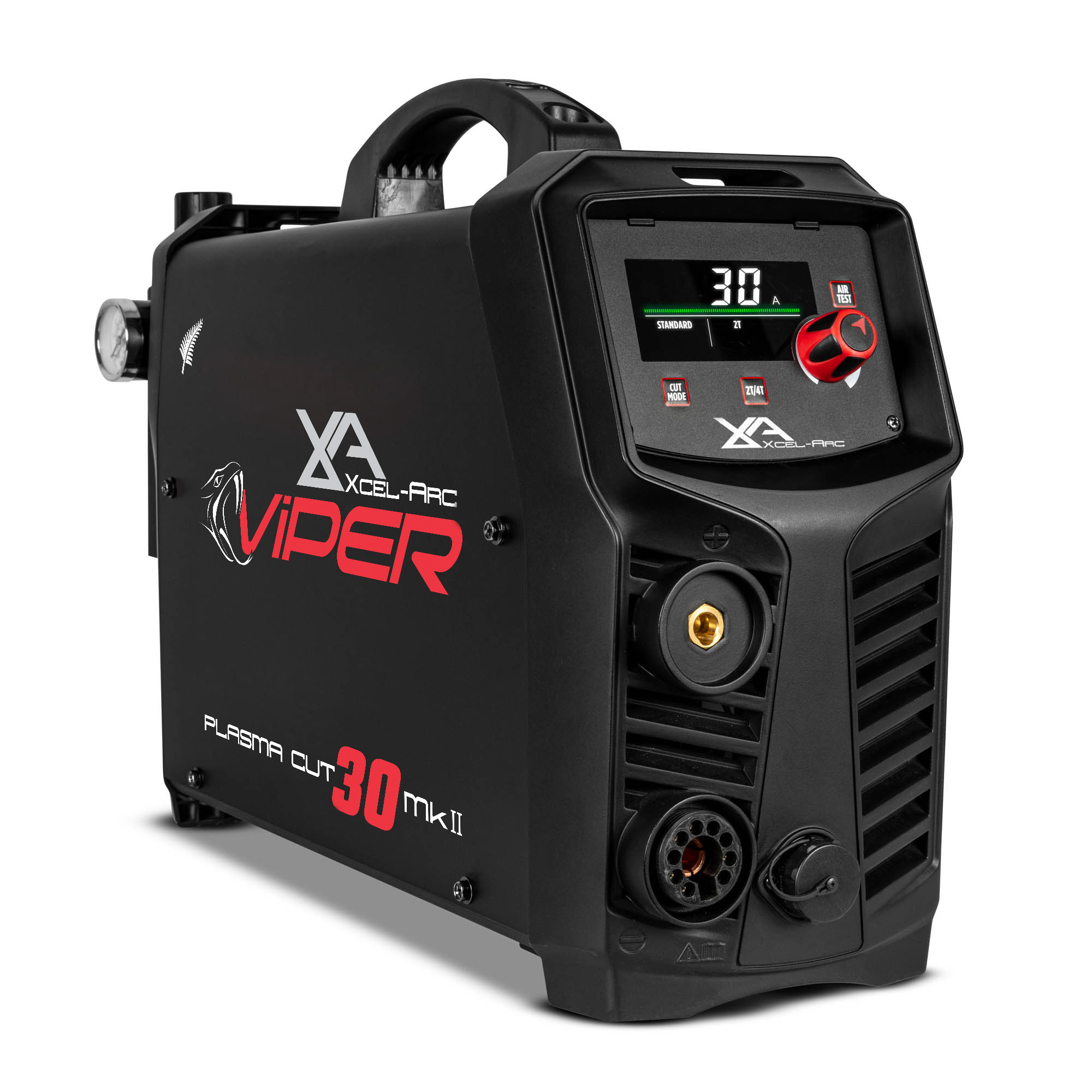

The all-new VIPER™ CUT 30MkII Plasma Cutter is specifically designed for the DIY enthusiast. Fitted with a 10 AMP plug, it’s never been easier to set up a plasma cutter at home or in your workshop.

A more effective output has allowed the VIPER™ CUT 30MkII to clean cut up to 10mm Mild Steel.

CUT ANYTHING

Get unrivalled performance across every kind of metal. Whether you’re working on solid mild steel or trying out the new perforated cutting mode on materials like mesh and grating, the VIPER CUT 30 Mk II can do it all.

PILOT ARC START

Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.

10 AMP PLUG

Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.

MAXIMUM POWER

The VIPER CUT 30 Mk II is one of the most powerful cutters for its size. Running at just 30A, this machine still has the capability to produce a 10mm clean cut and a 12mm severance.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG: 10 AMP

RATED INPUT POWER (kVA): 7.5

Ieff (A): 10

RATED OUTPUT: 92V

PROTECTION CLASS: IP21S

INSULATION CLASS: F

MINIMUM GENERATOR (kVA): 8.0

DINSE CONNECTOR: 10/25

STANDARD: AS/NZ60974-1

WARRANTY (Years): 1

SIZE & WEIGHT

DIMENSIONS (mm)

534x166x343mm

WEIGHT (kg): 8.5kg

THERMAL OVERLOAD PROTECTION
Over Temperature Warning

PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE: 20-30A

PLASMA CUT DUTY CYCLE @ 40°C: 15% @ 30A

MILD STEEL CUT THICKNESS: 10mm

MILD STEEL SEVERANCE THICKNESS: 12mm

ALUMINIUM CUT THICKNESS: 6mm

ALUMINIUM SEVERANCE THICKNESS: 8mm

STAINLESS STEEL CUT THICKNESS: 6mm

STAINLESS STEEL SEVERANCE THICKNESS

8mm

AIR FLOW DRAW OFF (L/min)

170

AIR FLOW PRESSURE (Bar)

5-6 (70-87 psi)

PLASMA ARC START: Pilot Arc

Product Code: XA-CUT30VMK2-K
