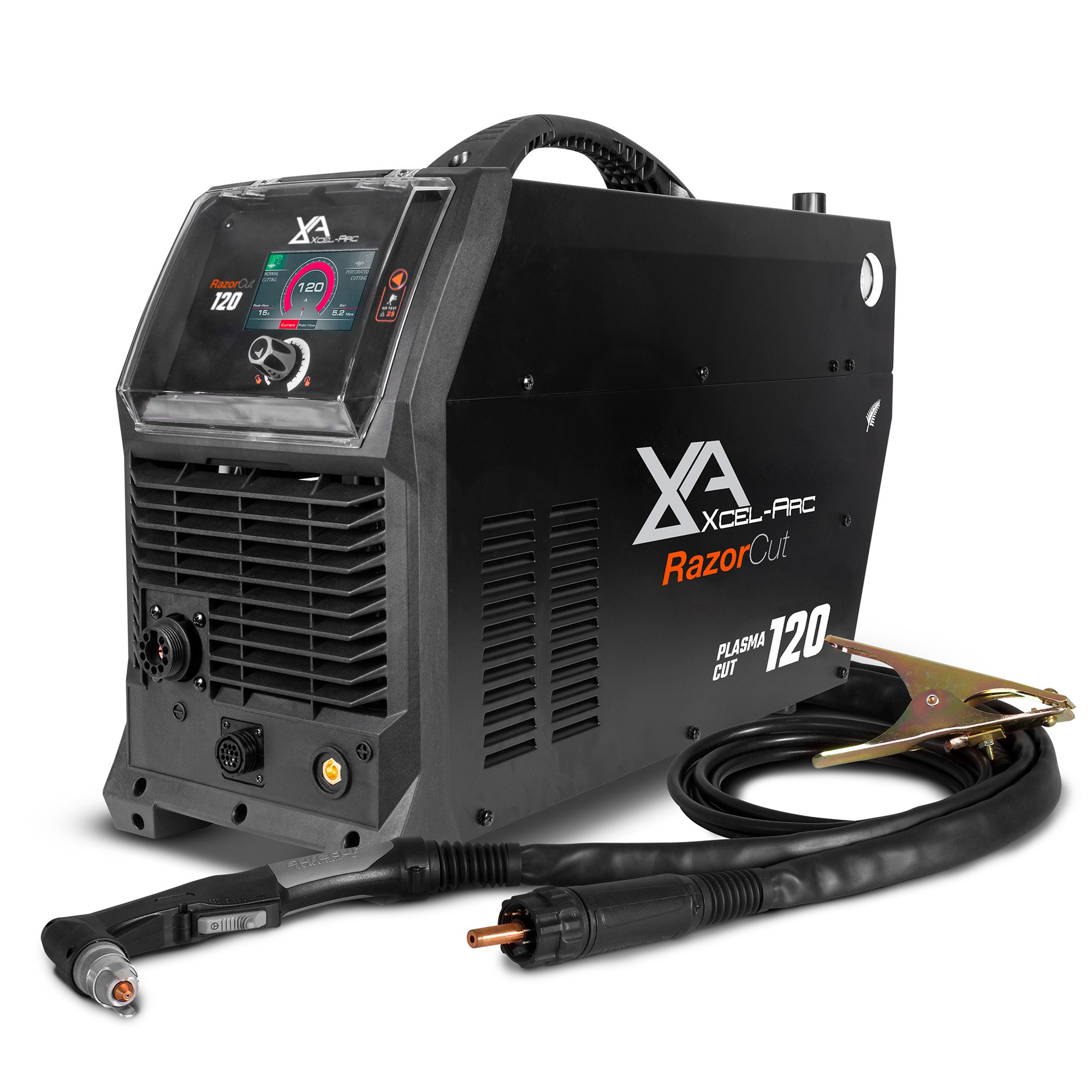

The RAZOR™ CUT 120 is designed for maximum performance, offering the highest level of cutting performance from Xcel-Arc’s range. Capable of clean cutting 45mm and severing 60mm, this machine is for the professional needing maximum power from a portable machine.

CNC Connection

Pilot Arc Start

Digital Screen

45mm Clean Cut

60mm Severance

2T/4T Torch Controls

Air Test

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

415V Three Phase

SUPPLY PLUG: No plug supplied (32 AMP Recommended)

Ieff (A): 26.0

NO LOAD VOLTAGE (V): 420

PROTECTION CLASS: IP21S

INSULATION CLASS: F

DINSE CONNECTOR: 10/25

STANDARD: AS/NZ60974-1

WARRANTY (Years) 3

PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE: 20-120A

PLASMA CUT DUTY CYCLE @ 40°C: 60% @ 120A, 100%@100A

MILD STEEL CUT THICKNESS: 45mm

MILD STEEL SEVERANCE THICKNESS: 60mm

ALUMINIUM CUT THICKNESS: 36mm

STAINLESS STEEL CUT THICKNESS: 45mm

AIR FLOW DRAW OFF (L/min): 189

AIR FLOW PRESSURE (Bar): 5.17 (75 psi)

PLASMA ARC START: Pilot Arc

SIZE & WEIGHT

WEIGHT (kg)

24kg

MACHINE FEATURES

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

PRODUCT CODE: XA-CUT120RZ-K
