196, 196M Universal Back-Plunger Dial Test Indicators

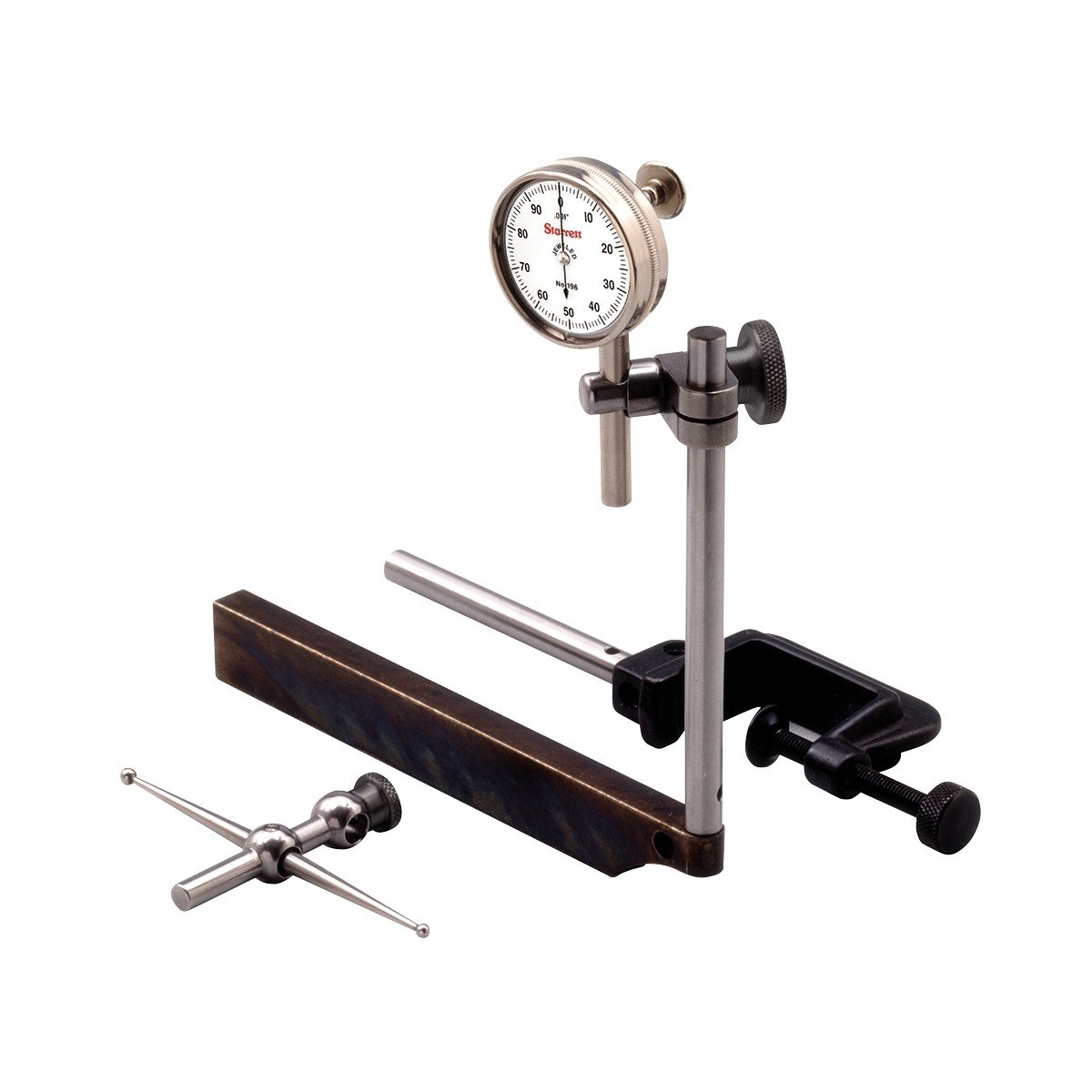

Back Plunger Dial Indicator, .200" Range, 0-100 Dial Face, .001" Grads, 3 Contact Points, Adaptor, 4 Attachments, Case

The Starrett 196 Universal Back Plunger Dial Indicator features graduations to .001" and 0.02mm that handle by far the majority of jobs. Shank diameter is 1/4" (6.3mm). Antimagnetic models are also available - (inch reading) 196A6Z and 196B6. For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model. Then the contact should be brought against the work with enough pressure to give the hand one full turn. Set the hand at zero by rotating the dial with the knurled bezel. This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation. 0-100 with 3 Contact Points, Adapter, 4 Attachments in Case This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation.

FEATURES

One of the most versatile indicators available

Accurate and reliable

Simple to operate

Rugged, with few moving parts

Smooth in operation

For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model

Shank diameter is 1/4" (6.3mm)

Attachments include clamp, tool post holder, snug and hole attachment

In Case

SPECIFICATIONS

Range (in): .200"

Graduations (in): .001"

Dial Reading: 0-100

Attachments: Indicator with 3 Contact Points, Adaptor, 4 Attachments* in Case

Dial Color: White

Product Code: 196A1Z
