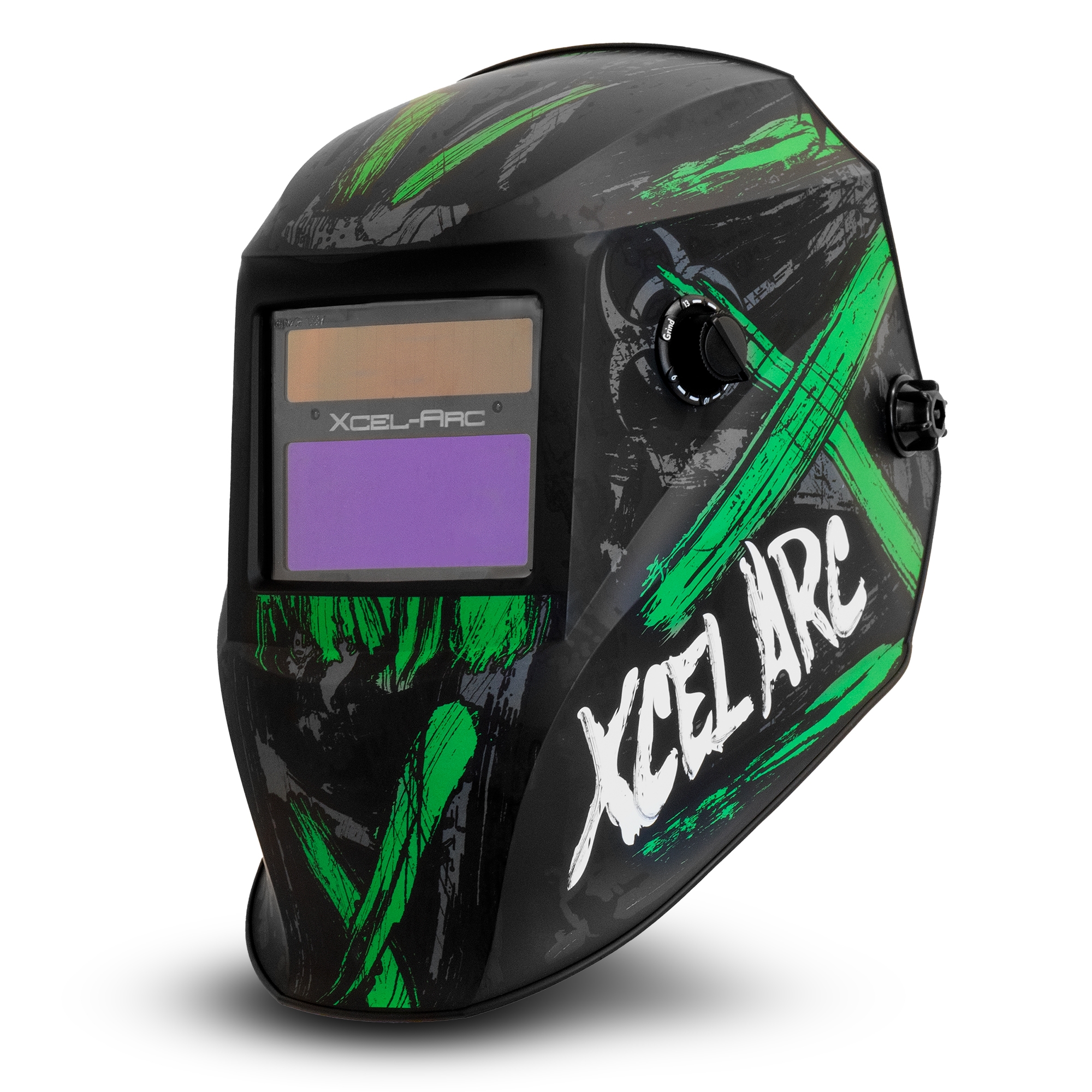

The TOXIC Automatic Welding Helmet provides protection to your face and eyes from spatter and UV/IR radiation. Fitted with 2 arc sensors, the TOXIC Welding Helmet features 9-13 Shade control as well as GRIND mode for use when grinding.

The TOXIC Welding Helmet comes with ELITEVISION™ Lens Technology to ensure you always get a clear and natural view of your surroundings and workpiece.

HELMET SPECIFICATIONS

FILTER DIMENSIONS

97x118mm

VIEW SIZE

96x42mm

ARC SENSOR 2

CLASSIFICATION  1/1/1/2

LIGHT STATE 4

DARK STATE  9-13

UV/IR PROTECTION  DIN15

TIME FROM LIGHT TO DARK  0.1ms

TIME FROM DARK TO LIGHT

0.1-0.9s

SENSITIVITY DELAY

Adjustable (Internal)

POWER SUPPLY

Solar Cells

OPERATING TEMPERATURE  -10˚C to 65˚C

STORAGE TEMPERATURE  -20˚C to 85˚C

SHADE CONTROL  Yes (External)

GRIND MODE  Yes (External)

STANDARDS  ANSI / DIN / CE / CSA / AS/NZS

REPLACABLE PARTS

OUTER LENS  XA-AS-100-FCL

INNER LENS  XA-AS-1-ICL

HARNESS  XA-AS-1-HB

SWEAT BAND  XA-AS-1-SWB

FILTER  XA-1001F(G)

Product No: TOXIC
