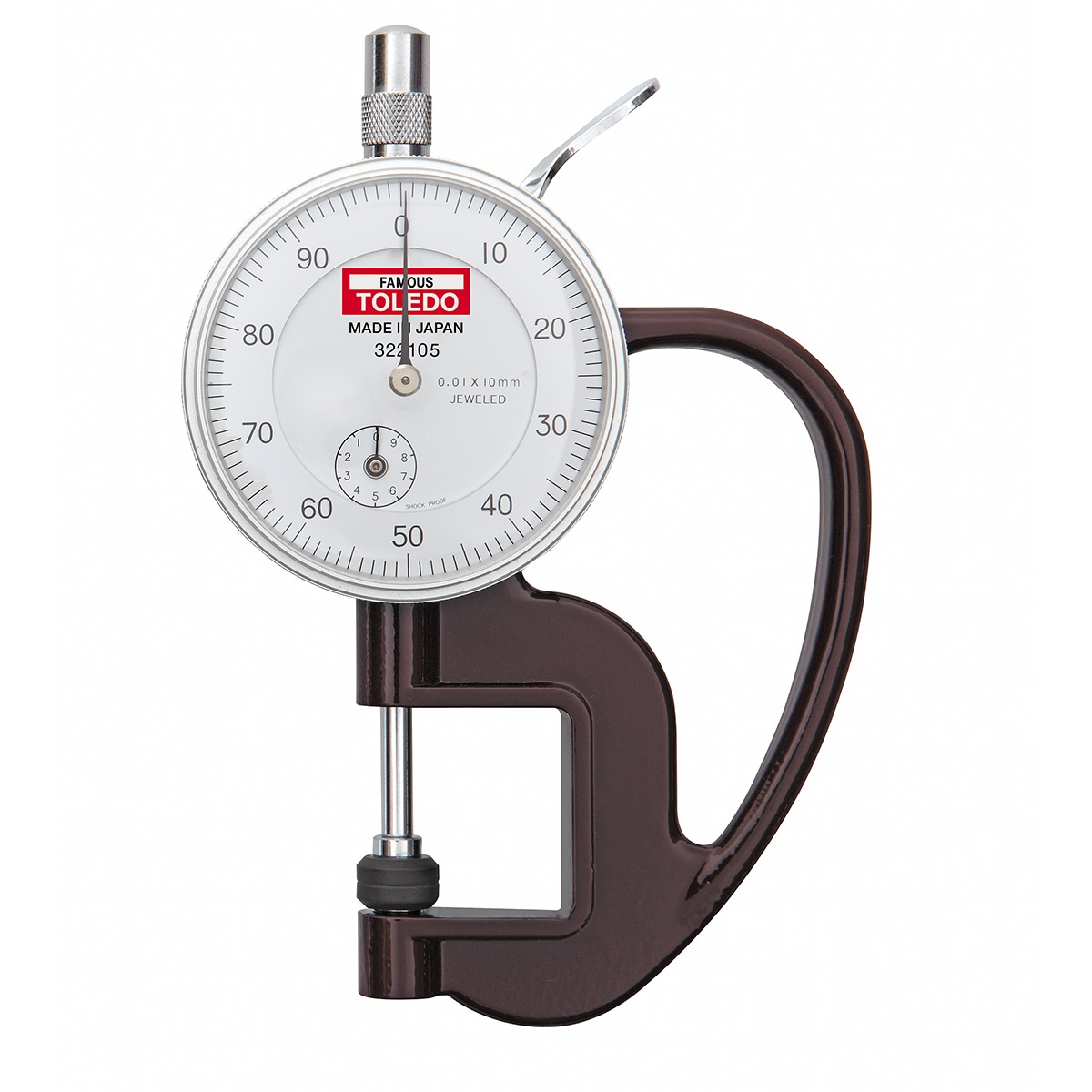

High precision expert thickness gauge for precision measuring work

Provides quick and accurate measurement of small dimensions

Simple lever operation used to clamp onto object to be measured

Ideal for measuring the thickness of small parts, metal, glass, plastic, rubber, vinyl, foil and other sheet material

Ceramic body available in standard and deep throat depth

Made in Japan

Specifications

Type: Metric Standard

Graduation Range: 0.01 x 10mm

Throat Depth: 20mm

Accuracy: ± 20μm

Contact Point Diameter: 10mm

Contact Point Parallelism: 5μm

Measuring Force: < 1.8

Product Code: 322105
