DESCRIPTION:

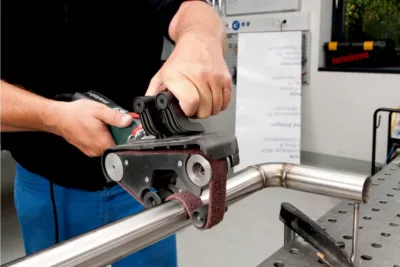

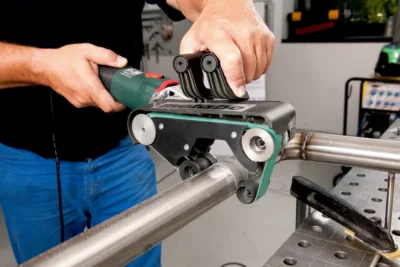

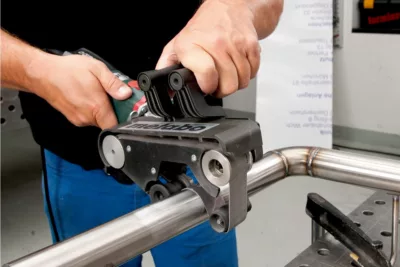

Compact tube belt sander with high belt speeds for productive processing of stainless steel pipes
Large wrap angle of 190° for smooth surfaces
Metabo Marathon motor with patented dust protection for long service life
Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load
Tool-free change of sanding belt and adjustable belt guide
Electronic overload protection for long service life
Electronic soft start for smooth start-up
Restart protection: prevents unintentional start-up after power supply interruption
Auto-stop carbon brushes to protect the motor
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.

Characteristics

Rated input power900 W

Output power470 W

Belt speed in idle8 - 14 m/s

Dimensions of grinding belt30 x 533 mm

Maximum pipe diameter60 mm

Wrap angle190 °

Weight (without power cable)3.1 kg

Cable length4 m

Vibration

Surface grinding1.8 m/s²

Uncertainty of measurement K1.5 m/s²

Noise emission

Sound pressure level88 dB(A)

Sound power level (LwA)99 dB(A)

Uncertainty of measurement K3 dB(A)

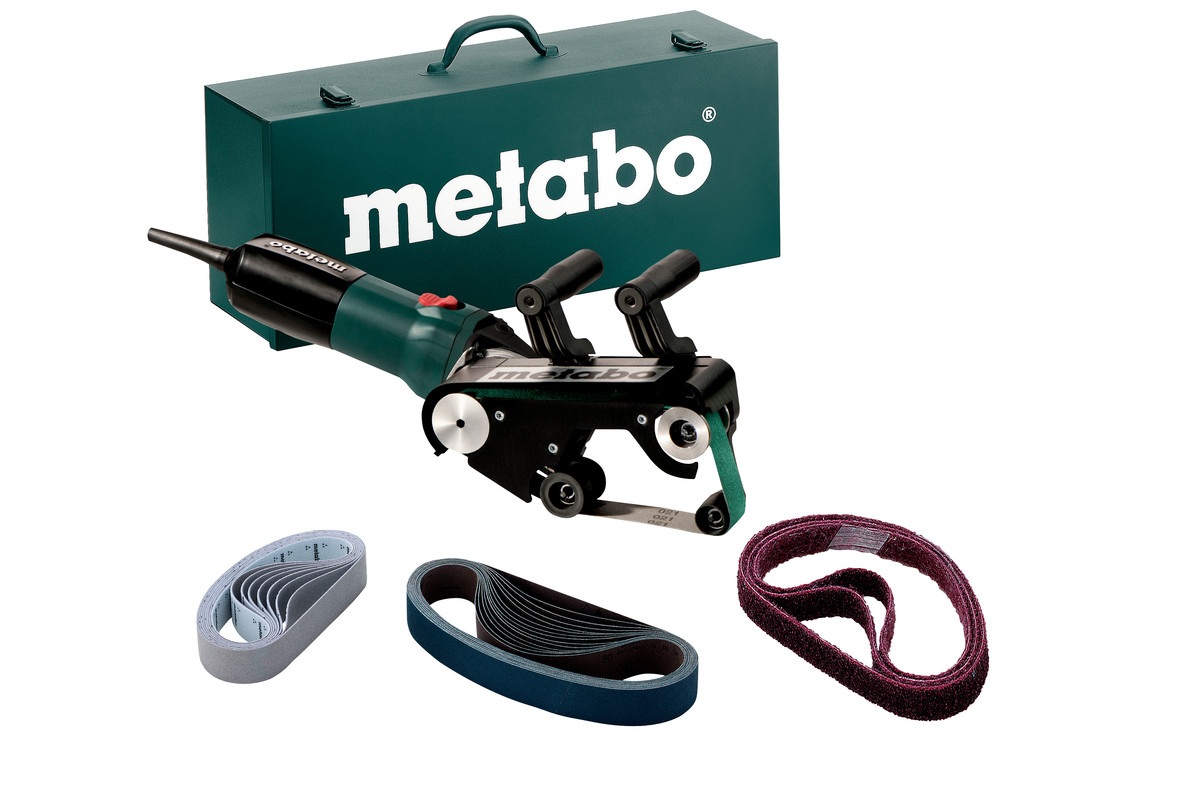

SCOPE OF DELIVERY:

10 Sanding belts zirconia (30x533 mm; P80)
2 Pyramid sanding belts (30x533 mm; P280/A65)
2 Pyramid sanding belts (30x533 mm; P400/A45)
2 Pyramid sanding belts (30x533 mm; P600/A30)
2 Pyramid sanding belts (30x533 mm; P1200/A16)
3 Fleece bands (30x533 mm; medium)
Metal carry case

PRODUCT CODE: RBE9-60SET
