Specifications

0-300mm

Features & Benefits

Fully hardened and tempered precision rules with deeply

etched graduations on both sides for ease of reading and long life

Fully hardened and ground datum faces to resist wear

Centrally mounted protractor vial allows unrestricted viewing

Protractor has full 360 degree scale plate,

graduated 0-180 degrees

Satin chrome scale plate on protractor

Unique rule clamp allows positive location and clamping

Square head offers the following fixed angles

15, 30, 45, 60, 75 and 90 degrees

Centre head offers a fixed 90 degree angle, for finding the centre of round bar stock up to 120mm diameter

Clipped corner on rule to maximize capability

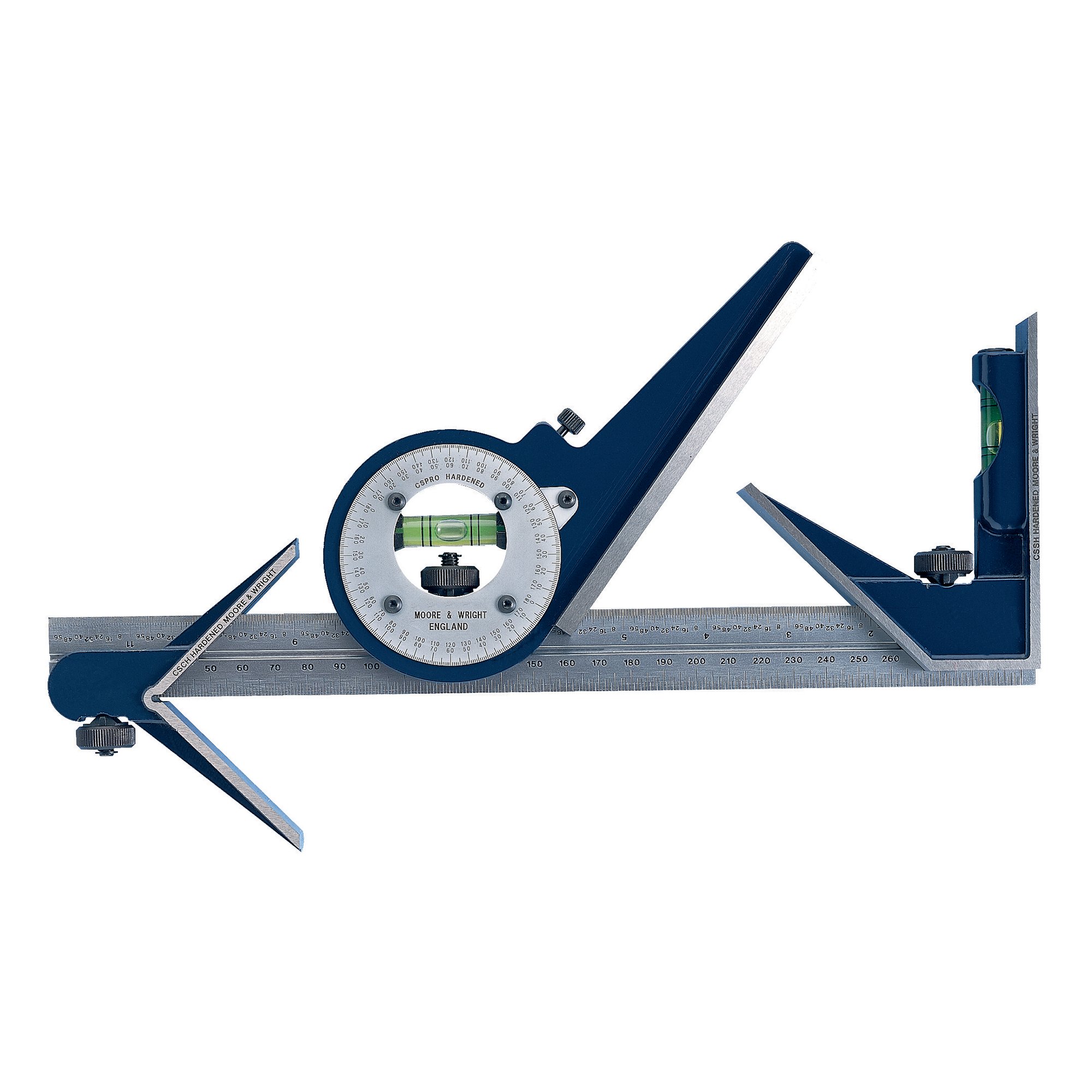

Product Code: MW-CSM300
