FEATURES

- Absolute measurement system. No need to reset the origin.

- Can be used in workshop conditions exposed to coolant, dust and oil

- Easy to use with advanced ergonomic design uses only 1 button.

- Large and clear LCD readout

- Metric and Inch reading

- The automatic power-on/off function shuts down the LCD display after 20 minutes inactivity. Power is restored to the display when the slider is moved.

- Can measure outside and inside dimensions, depth and steps

- Can be integrated into statistical process control and measurement system.

- Error message is displayed if error in calculation is found and mesurement is stopped.

- SR44 Battery (938882) should be used with this model

- TUVRheinland Certified ID 2011207400

SPECIFICATIONS

Range: 0-8"

Accuracy: ±0.001"/±0.02mm

Resolution: 0.0005"/0.01mm

Repeatability: 0.0005"/0.01mm

Quantizing Error: Not including ±1 count

Scale type: Absolute electromagnetic induction linear encoder

Battery life: Approximately 5 years under normal use

IP67 protection level

Thumb roller

INCLUDES:

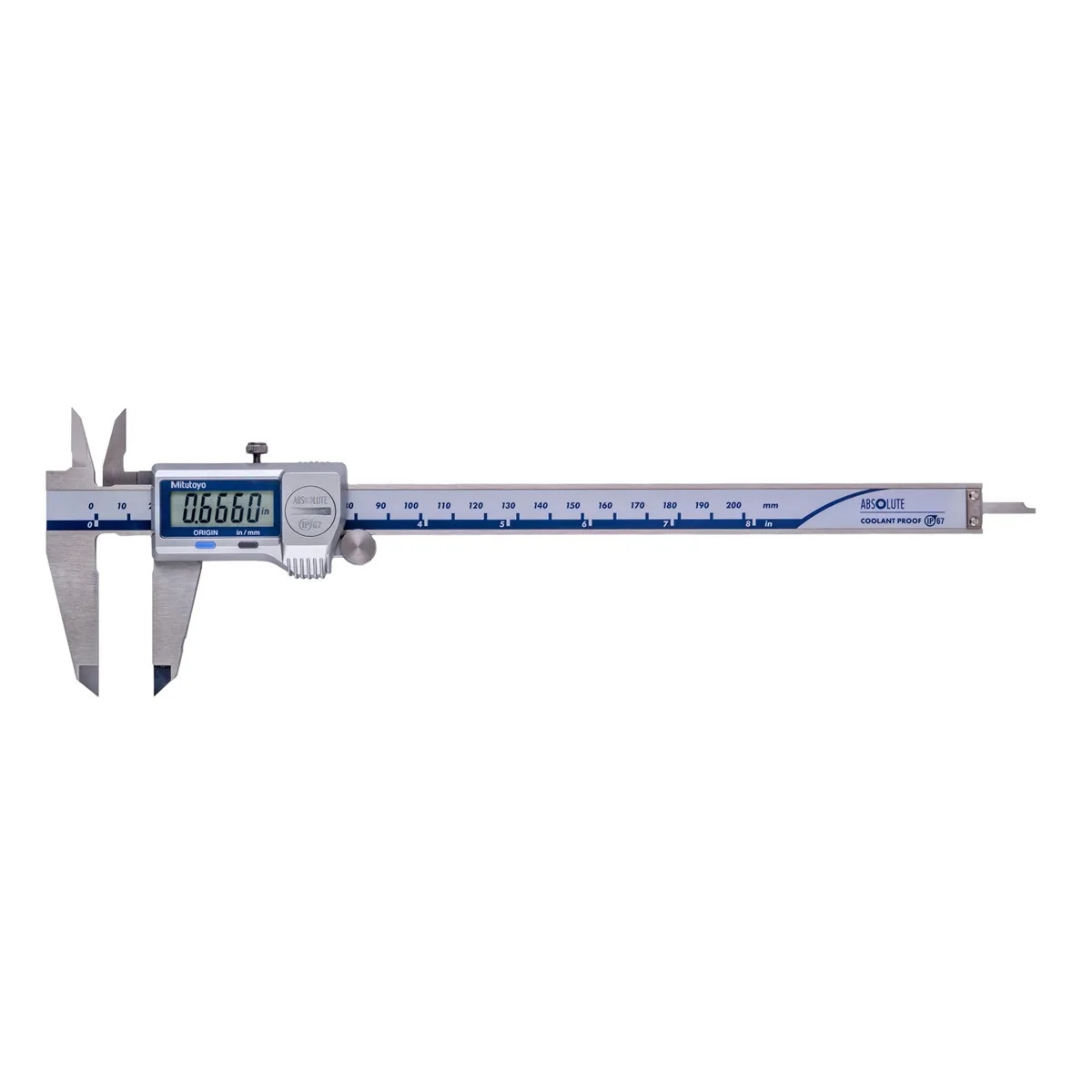

Mitutoyo Digimatic Calipers 200mm 8" 0.01mm 0.0005" IP67 Coolant Proof 500-753-20

Inspection Certificate

PRODUCT CODE: 500-753-20
