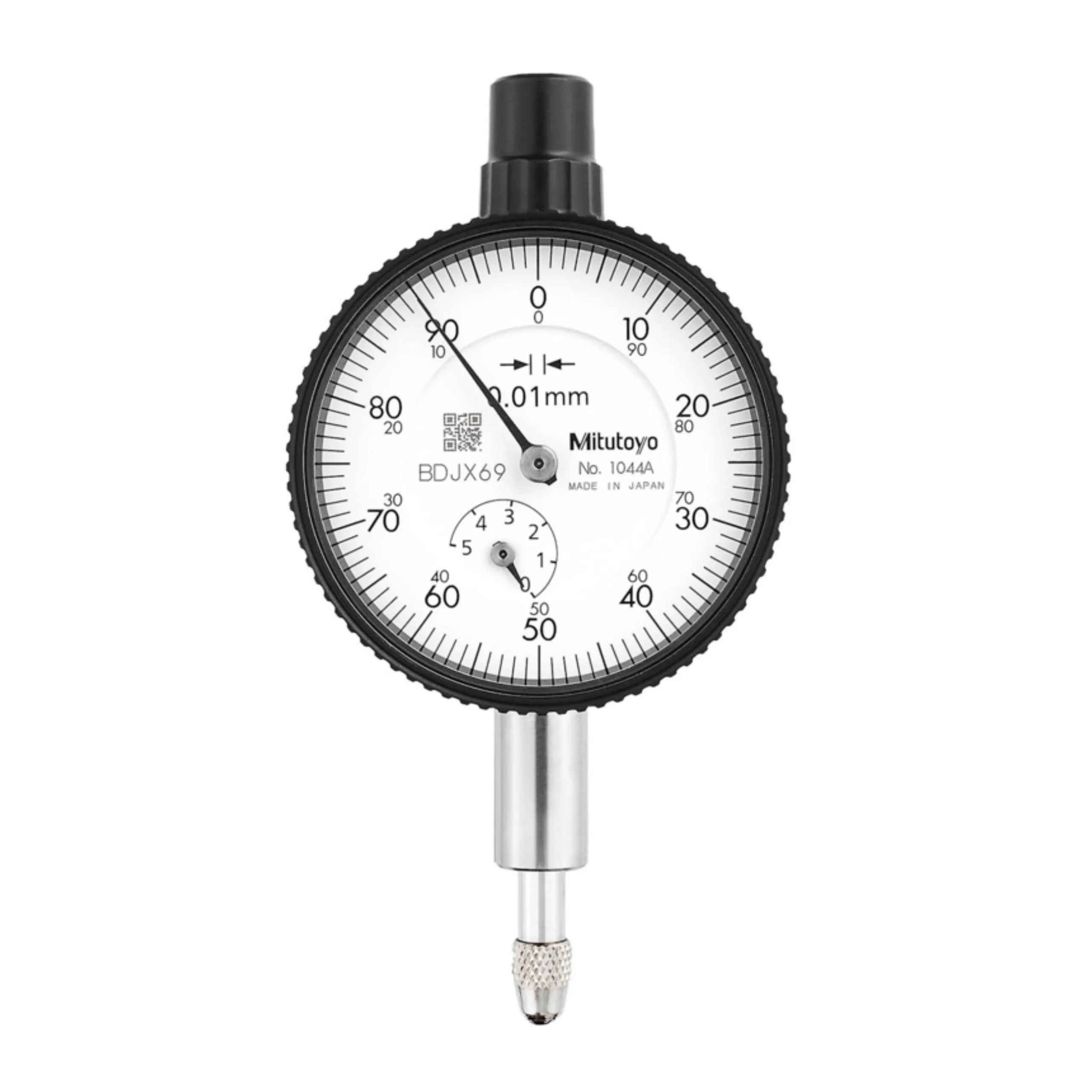

Mitutoyo 1044A Series 1 Dial Indicator has a revolutionary stem-bush design for trouble free stem clamping and longer clamping range. No through screw-hole on the frame for high dust-resistance. Greater rigidity in the bearing plate for reducing the tracing error. This model has a Lug-Back with a range of 5mm with 1mm per revolution, 0.01mm graduation and 0-100 Dial Reading with an 8mm Stem., The Mitutoyo “A†Series Dial Indicators have scratch resistant, anti-glare coated crystals just like our popular Test Indicators. They also have a standardized stop screw thread to M2.5x0.45, increased mounting stem length*, a redesigned spindle for waterproof models allowing for additional contact points to be used, a tapered hand/pointer base which makes repairs easier when needed, tolerance clips are now optional, a change in stop screw shape*, and the bezel and dust cap colors are black.

SPECIFICATIONS

Range:5mm

Graduation:0.01mm

Type: Series 1, Lug Back

Accuracy:+/- 0.01mm First 2.5 revolution +/-.0.013mm Overall

PRODUCT CODE: 1044A
