Description

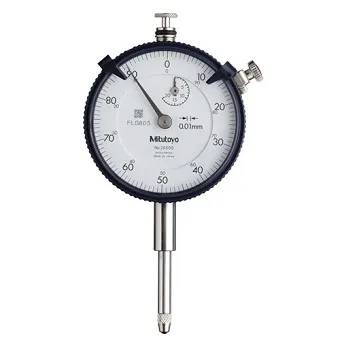

Standard Type, 20 mm Range, 0,01 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Features

Digital/Analog: Analog

Inch-Metric: Metric

Range: 20 mm

Range per rev.:

1 mm

Graduation:

0.01 mm

Measuring force:

0,4-2 N

MPE any 1/10

revolution: 6 µm

MPE any 1/2

revolution: 10 µm

MPE any 1

revolution: 11 µm

MPE measuring range: 20 µm

H MPE (Hysteresis): 4 µm

R MPE (Repeatability): 3 µm

Stem: 8 mm

Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm

Delivered: With certificate of inspection

Continuous dial: Yes

Cushioned end point: Yes

Mass: 149 g

fu: 4 µm

Functions: ISO type

PRODUCT CODE: 2050A
