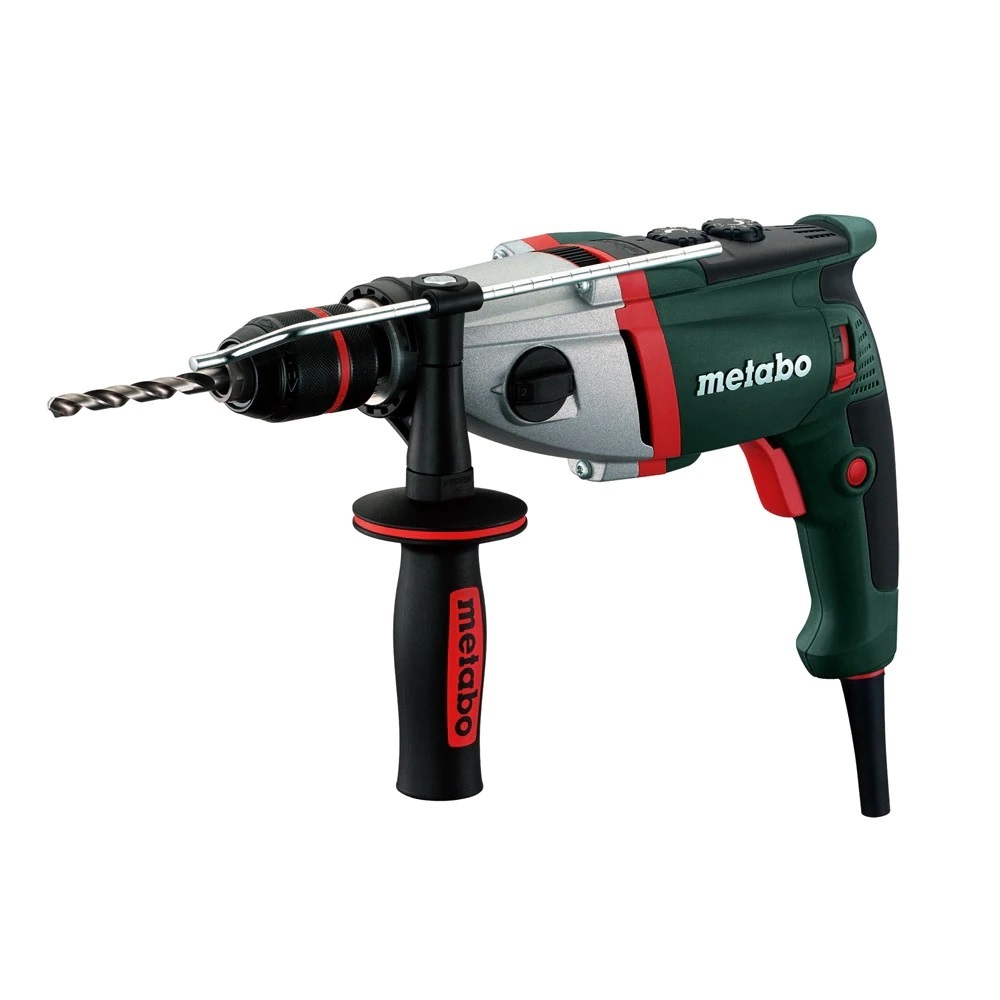

Description:

Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
Thumbwheel for Speed Preselection
Robust die cast aluminium gear housing for optimum heat dissipation and long service life
Rotating carbon brush bridge for maximum performance even in anti-clockwise operation, e.g. for the removal of stubborn screws
Metabo Marathon-motor with dust protection for long service life
Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly
Forward and reverse rotation
Spindle with hexagonal recess for screwdriver bits for working without chuck
Restart protection: prevents unintentional start-up after power supply interruption
Cable-protecting ball joint for optimal freedom of motion when working
With metaBOX, the intelligent solution for transport and storage
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.

Technical Data:

Characteristics

Rated input power1010 W
Output power540 W
Maximum torque40 / 14 Nm
Drill-Ø masonry22 mm
Drill-Ø concrete20 mm
Drill Ø steel16 / 10 mm
Drill-Ø soft wood40 / 25 mm
No-load speed0 - 1000 / 0 - 2800 rpm
Speed at rated load1000 / 2800 rpm
Maximum impact rate53200 bpm
Gears2
Chuck capacity1.5 - 13 mm
Collar diameter43 mm
Drill spindle with hexagonal recess6.35 mm
Drill spindle thread1/2 " - 20 UNF
Chuck clamping typeKeyless chuck
Weight (without power cable)2.7 kg
Cable length4 m
Vibration
Drilling in metal4.2 m/s²
Uncertainty of measurement K1.5 m/s²
Impact drilling concrete17 m/s²
Uncertainty of measurement K1.5 m/s²
Noise emission
Sound pressure level103 dB(A)
Sound power level (LwA)114 dB(A)
Uncertainty of measurement K3 dB(A)

Scope of Delivery:

Futuro Plus keyless chuck
rubber-coated side handle
Drilling depth guide
metaBOX 145 L

Product Code: SBEV1000-2
