Cutting height:103 mm

Passage width:245 mm

Rated input power:400 W

• High precision and stability for highest cutting quality
• Quiet belt path thanks to balanced flywheels with rubber coating
• Top and bottom HSS precision three-roller guide of the band saw blade for accurate cutting results, adjustable without tools
• Precise rip fence with double clamping and quick fastening
• Quiet induction motor, maintenance-free and robust.
• Restart protection: prevents unintentional start-up after power supply interruption
• Swivelling grey cast iron saw table for inclined cuts
• Door opening without tools for easy saw blade change
• Tool-less height adjustment of the saw blade guard
• LED work light for illumination of the cutting line
• External extraction possible for low-dust working
• Radius cutting with circle sawing attachment (accessory)

The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.

Characteristics

Dimensions530 x 470 x 840 mm

Support surface328 x 335 mm

Working height without stand375 mm

Sawing bench swivel range0 - 45 °

Cutting height103 mm

Passage width245 mm

Cutting speed735 m/min

Saw belt length1712 mm

Mains voltage220 - 240 V

Rated input power400 W

Output power270 W

Weight32.5 kg

• Universal band saw blade A6
• Rip fence
• Mitre Fence
• Suction adapter (for Ø 44, 58, 100 mm)
• Push stick

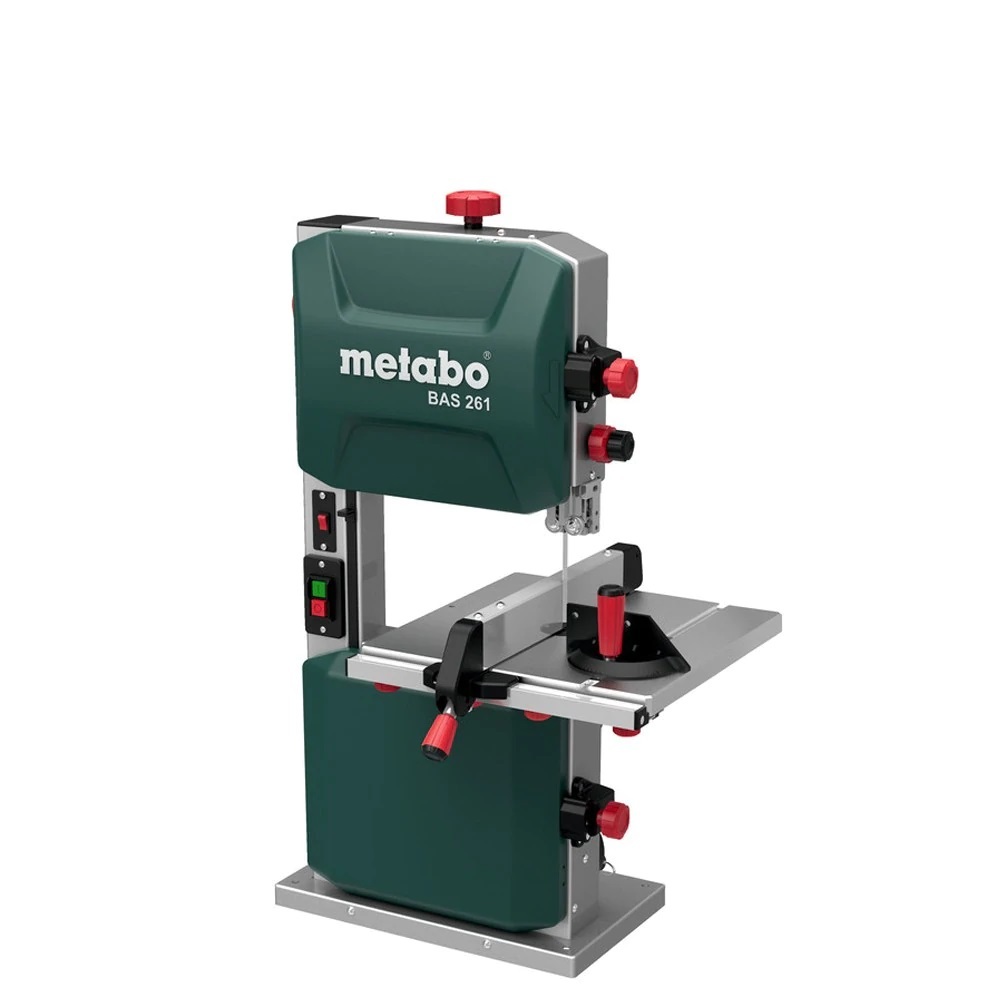

Product Code: BAS261PRECISION
