Forward Rail Design for smooth precise cutting

Expandable sub-table for improved stability when cutting long material

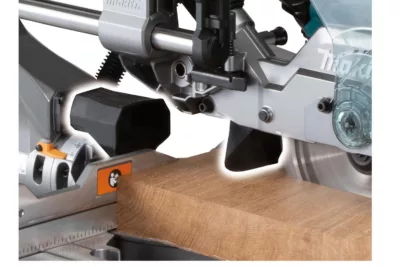

Shadow line projects cut line onto work material

Dual zone dust extraction ports suppress dust scattering of wood chips

Compatible with AWS* for wireless connectivity with compatible dust extraction

Specifications

Blade diameter 216mm (8-½")

Max cutting capacity

- at 90° 70 x 312mm

- at 45° 50 x 220mm

- at 30 x 220mm

Bevel angle 48°

No load speed 4,800rpm

Overall dimensions 702 x 551 x 557mm

Net weight 16.4kg

Sound Level 100dB(A)

Continuous rating input 1000W

Voltage 40V

XGT battery compatibility 2Ah 2.5Ah 4Ah 5Ah

AWS Capable Bevel Cutting 45 LR Brake Built in Job Light Constant Speed DC Dust Collecting Soft Start

All product and accessory specifications are subject to change without notice.

Available options

LS002GZ01

Skin tool

LS002GM101

4.0Ah battery (BL4040), rapid charger (DC40RA), Efficut 216 x 45T(E-06993) and AWS chip

LS002GM105

Black edition, 4.0Ah battery (BL4040), Dual rapid charger (DC40RB), Efficut 216 x 45T(E-06993) and AWS chip

Included accessories

Efficut Saw Blade (E-06993), Dust Bag, Triangular Rule (762001-3), Vertical Vise, Hex Wrench and (191U61-8) Sub base assembly

Optional accessories

Horizontal Vise (122567-9)

EFFICUT 216mm blades

Batteries & chargers

40Vmax XGT Batteries & Chargers

Product Code: LS002GM105
