Product Info

18V 70Nm Brushless Impact Drill (DV18DE)

Compact, powerful brushless model, with superior handling

Heavy Duty 13mm keyless chuck and 22 stage clutch

Ractive Force Control safety function

Robust aluminium gear-case

18V 175Nm Brushless Impact Driver (WH18DE)

Variable speed trigger for greater control

175Nm max tightening torque

Bright LED Light

18V Brushless Slide Switch 125mm Angle Grinder (G1813DA)

Anti-kickback, overload and restart protection

Slide Switch for easy operation

Anti-vibration Handle

18V High Performance brushless motor

36V Brushless 185mm High Powered Circular Saw (C3607DA)

Max cut 47.5mm at 45°

Max cut 62mm at 90°

Silent Mode allows for quieter operation

18V Brushless 130mm Sabre Saw (CR18DMA)

18V high-performance brushless motor

Anti-vibration system (UVP)

Tool-less blade change

Adjustable pivoting shoe

18V Brushless Multi Tool (CV18DBL)

High performance brushless motor

Compact and lightweight

Variable Speed Dial and soft-start

AUTO mode automatically increases and decreases the speed automatically

18V Brushless 26mm SDS+ Rotary Hammer (DH18DBL)

Consistent speed control

3 mode action : Rotary Drilling, chiselling and Hammer Drilling

Reactive Force Control

18V Brushless 1/4" Laminate Trimmer (M1808DA)

Rack and pinion adjustment system

Variable Speed Control

18V 82mm Planer (P18DSL)

Max. cutting depth 2.0mm and rebate up to 9mm

32,000 cuts per minute

18V 3-stage Blower (RB18DC)

Powerful compact blower

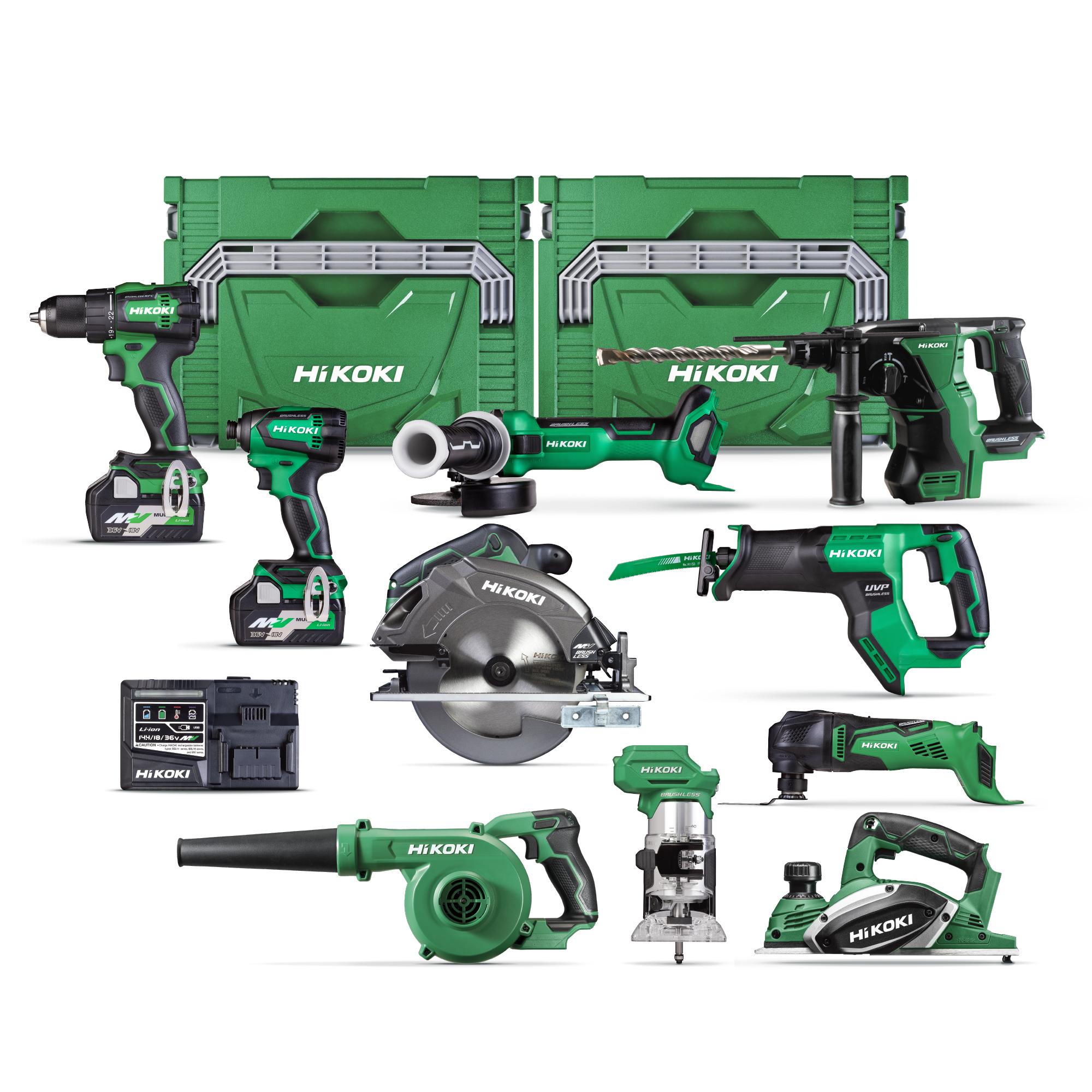

Supplied with 2x 1080W Multi Volt batteries (BSL36A18), 32min. Rapid Smart Charger and Cases

Product Specs

DV18DE Hard Torque (Nm) 70Nm

Soft Torque (Nm) 64Nm

Wood Capacity 102mm

Steel Capacity 16mm

Masonry Capacity 20mm

No Load Speed Low : 400 min. / High : 1,800 min.

Impact Rate Low : 6,000 min. / High : 27,000 min.

Voltage 18V

WH18DE Ordinary Bolts 5 - 16mm

High Tension Bolts 5 - 12mm

Drive 1/4" Hex Drive

Tightening Torque (Nm) 175Nm

No Load Speed 0 - 3,100 min.

Full Load Impact Rate 0 - 3,400 min.

Voltage 18V

C3607DA Blade Dia. 185mm

Max Cut Depth 90° : 62mm / 45° : 47.5mm / -5° : 57mm

No Load Speed High : 4,300 min. / Silent Mode : 2,000 min.

Voltage 36V Multi Volt

G1813DA Disc Dia. 125mm

Spindle Thread M14 x 2

Anti-kickback Yes

Restart Protection Yes

Anti-vibration Handle Yes (LVH)

Voltage 18V

CR18DMA Pipe Capacity 130mm

Wood Capacity 300mm

No-load Speed 1,500/min (Slow)

No-load Speed 2,000/min (medium)

No-load Speed 3,000/min (high)

LED Light Yes

Voltage 18V

CV18DBL Oscillation Angle 3.2°

Starlock System Yes

No Load Speed 6,000 - 20,000/min

AUTO mode 15,000 - 20,000/min

Voltage 18V

DH18DBL Capacity

Steel 13mm

Masonry 26mm

Wood 27mm

No-load Speed 0 - 1,500/min

Impact Mode 0 - 3,950/min

Voltage 18V

M1808DA Collet Size 1/4"

No-load Speed 10,000 - 30,000/min

Plunge Depth 40mm

Voltage 18V

P18DSL Width 82mm

Depth 2.0mm

Rebate 9mm

No-load Speed 16,000/min

Voltage 18V

RB18DC Air Volume 0 - 3.5m3/min

Air Velocity 95m/s

Voltage 18V

Standard Accessories Supplied with 2x 1080W Multi Volt batteries (BSL36A18), 32min. Rapid Charger and Cases

Product Code: KC183610DE(GRZ)
