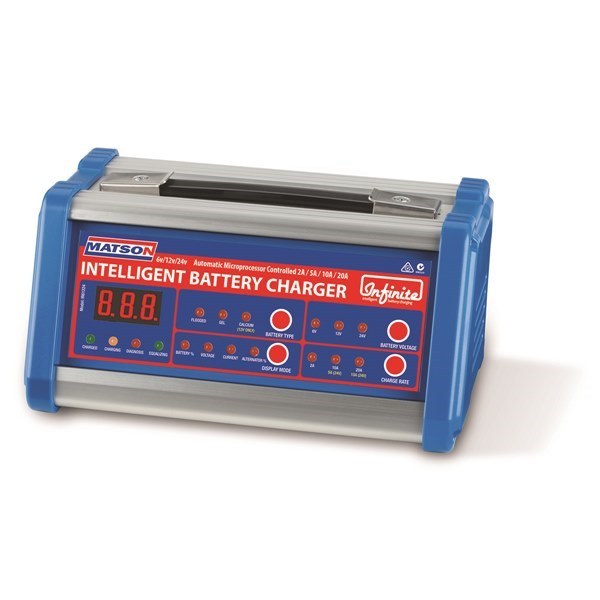

• 6/12/24 Volt Charger.

• 2/10/20 Amp Selectable on 6/12 Volt. 2/5/10 Amp Selectable on 24Volt

• Electronic Touch Button Control

• Chemistry selectable: GEL, Flooded (SLA, Deep Cycle, AGM), Calcium

• LED Display shows voltage, current (amps), battery capacity and fault diagnosis

• 7 stage charging for optimum battery conditioning and extended battery life.

ATTRIBUTES

Absorption YES

Alternator Function Alternator Test

Analysis / Fault Find YES

Case Construction Aluminum

Charge Rate 14.1V (Gel), 14.7V (Flooded), 15.1V (Calcium)

Charging Stage 7 Stage

Desulphation High Frequency Pulse charge (Dependent on Diagnosis)

Dimensions 246 x 146 x 50mm

Equalisation YES

Fan Cooled YES

Input Voltage - DC 240VAC, 50Hz

Min Start Voltage 1.5 Volt

Output Current 6/12 Volt, 2/10/20 Amp. 24 Volt, 2/5/10 Amp Selectable

Output Voltage 6/12/24 Volt DC Selectable

Permanent Mount No

Recondition YES

Soft Start Yes

Type Flooded, SLA, Deep Cycle, AGM, Calcium, GEL (Calcium 12V only, GEL 6/12V only)

Warranty 12 Months

Weight 2.4kg

Product Code: IR61224
