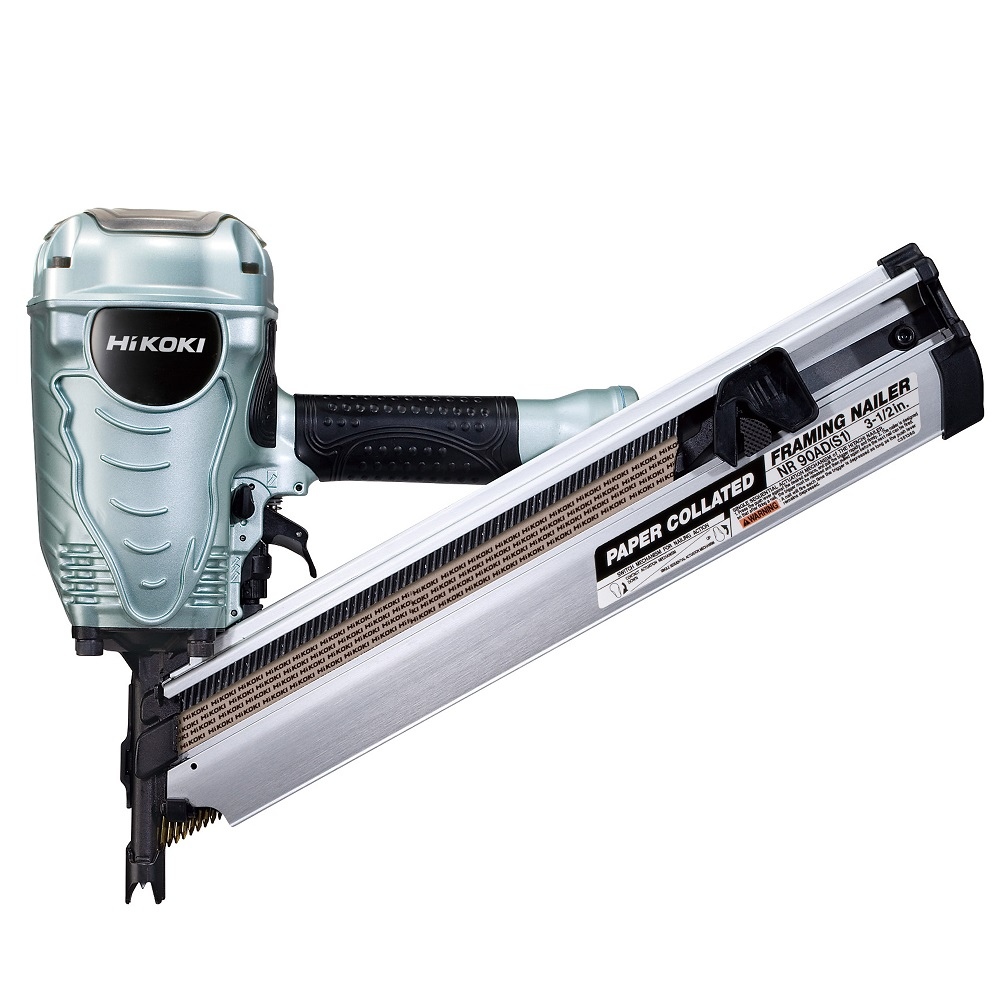

Product Code: NR90AD(H4Z)

Light but powerful air nailer, drives up to 90mm D-head nails with ease

Designed for high volume production applications, where maximum productivity & minimum maintenance is required.

Product Info

• Light but powerful air nailer, drives up to 90mm D-head nails with ease
• Tool-less depth adjustment
• Single action nailing operation
• Capable of driving 3 nails per second
• Strong alloy magazine capable of holding up to 74 nails
• Production Specification - Includes bump fire mode. This tool is only to be used in production / factory environments in accordance with WorkSafe guidelines. Not suitable for general construction site use.

Product Specs

Applicable Nail Sizes Length 50-90mm

Applicable Nail Sizes Nail Diameter 2.9-3.8mm

Applicable Nail Sizes D-head Diameter 6.8-7.7mm

Operating Pressure Range 70 - 120psi

Driving Speed 3 nails/sec

Magazine Capacity 50 - 74 nails

Air Inlet NPT 3/8 Thread

Dimensions 462 x 322mm

Weight 3.9kg

Standard Accessories Safety glasses

Recommended Tool Maintenance

We recommend a regular ongoing tool maintenance for this power tool. To see HiKOKI’s recommended service intervals and maintenance requirements.
