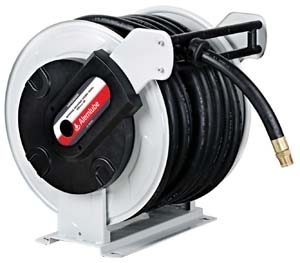

The EL Series HR90005 diesel, air and water spring rewind hose reel is a low pressure reel supplied standard with 30m rubber hose suitable for diesel transfer and air or water applications in commercial vehicle workshops, food processing, bottling plants, manufacturing facilities, pulp & paper manufacturing, mine site workshops, service vehicles and oil & gas industries.

Reinforced steel frame provides maximum strength & stability.

Maximum working pressure of 300psi (20bar) Includes 30m x 25mm ID rubber hose & hose stop 1.2m lead in hose supplied standard.

1.5mm thick robust drum assembly with stiffening ribs & flange edges. Reliable spring life and positive ratchet lock design ensures a long working life. Can be mounted on the floor or wall.

Durable long lasting powder coated finish protects against the incidence of rust. Extends hose life and reduces hose replacement costs Improves operator safety Improves factory or workshop productivity AIR EL FUEL HOSE REEL SERIES WATER X 1" 30M Temperature Range -20 +60 Maximum. Working pressure 300psi (20bar) Connection Inlet/Outlet 1"BSP Hose ID & Length 30m x 25mm.

• Reinforced steel frame provides maximum strength & stability

• Working pressure of up to 300psi (20bar)

• Includes 30m x 25mm ID rubber hose & hose stop

• 1.5mm thick robust drum with stiffening ribs & flange edges

• Reliable spring life of 20,000 cycles and positive ratchet lock design

• Can be mounted on the floor, wall or ceiling

• Durable long lasting powder coated finish

Product Code: HR90005

Barcode: 9323627050080
