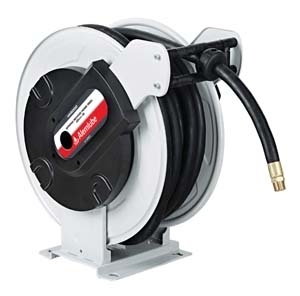

The EL Series HR90010 diesel, air and water spring rewind hose reel is a low pressure reel supplied standard with 15m rubber hose suitable for diesel transfer and air or water applications in commercial vehicle workshops, food processing, bottling plants, manufacturing facilities, pulp & paper manufacturing, mine site workshops, service vehicles and oil & gas industries.

Reinforced steel frame provides maximum strength & stability. Working pressure of 300psi (20bar) Includes 15m x 25mm ID rubber hose & hose stop.

1.2m lead in hose supplied standard. 1.5mm thick robust drum assembly with stiffening ribs & flange edges Reliable spring life and positive ratchet lock design ensures a long working life.

Can be mounted on the floor, wall or ceiling. Durable long lasting powder coated finish protects against the incident of rust Extends hose life and reduces hose replacement costs Improves operator safety Improves factory or workshop productivity.

AIR EL FUEL HOSE REEL SERIES WATER X 1" 15M Temperature Range --20 +60 Maximum Working Pressure 300psi (20bar) Connection Inlet/Outlet 1"BSP Hose ID & Length 15m x 25mm.

• Reinforced steel frame provides maximum strength & stability

• Working pressure of up to 300psi (20bar)

• Includes 15m x 25mm ID rubber hose & hose stop

• 1.5mm thick robust drum with stiffening ribs & flange edges

• Reliable spring life of 20,000 cycles and positive ratchet lock design

• Can be mounted on the floor, wall or ceiling

• Durable long lasting powder coated finish

• Suitable for diesel

Product Code: HR90010

Barcode: 9323689525208
