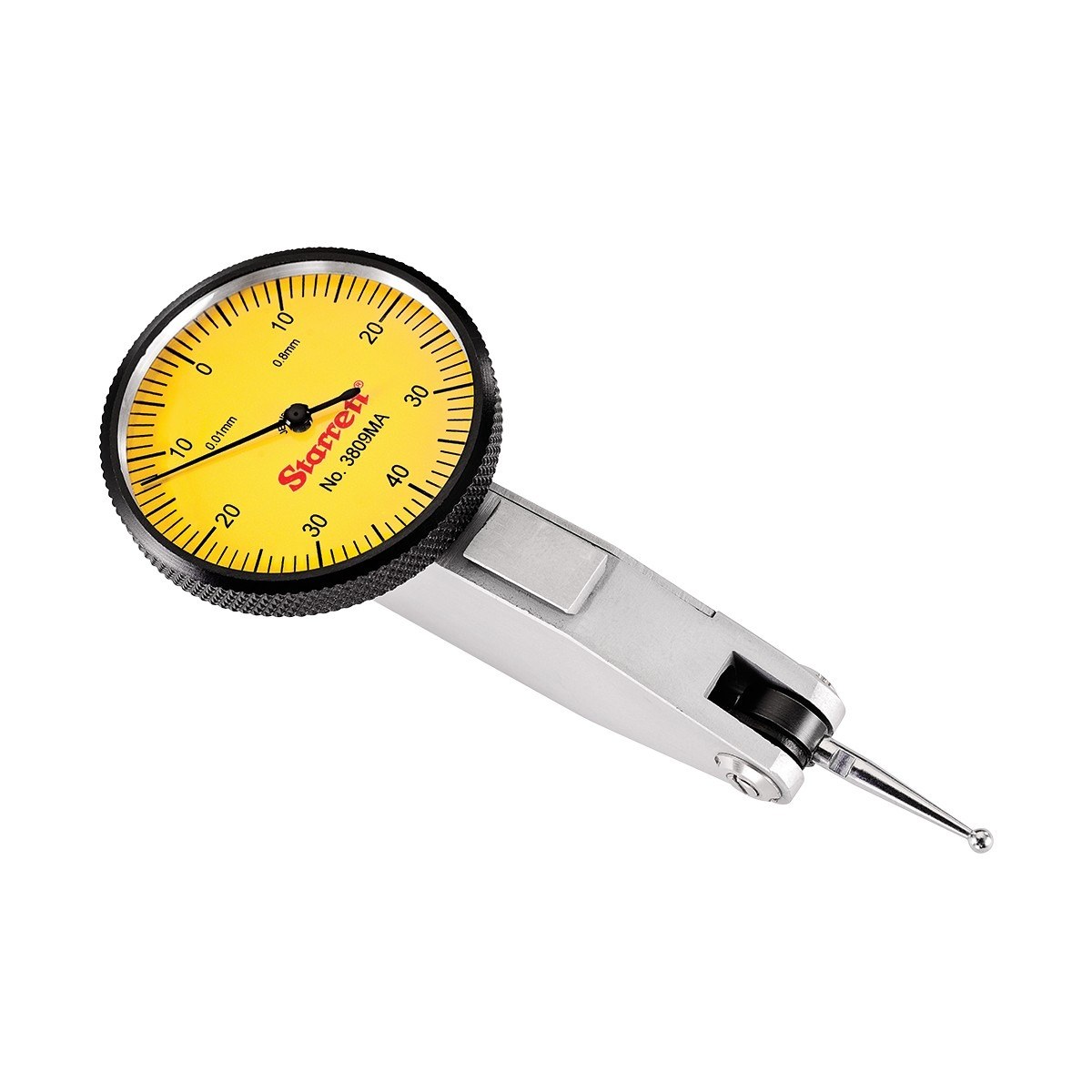

The Starrett 3809 precise, high quality test indicator offers a full complement of standard features. Indicator includes two dovetail clamps and case.

FEATURES

Three dovetail positioning mounts work with most existing test indicator accessories

Precision gear-driven design with smooth, jeweled movement

Contact point reverses automatically, always maintaining clockwise hand rotation

Contacts are frictionally adjustable and replaceable

Meets or exceeds ANSI/ASME accuracy specifications

High contrast, easy-to-read dials with a white background on inch reading and a yellow background on millimeter reading indicators

Narrow body for in reach ability

Satin chrome finish for durability

SPECIFICATIONS

Range (mm): 0.8mm

Graduations (mm): 0.01mm

Dial Reading: 0-40-0

Attachments: 4mm contact point, 9.5mm & 4mm dovetail clamps & case

Dial Color: Yellow 32mm Diameter

Product Code:3809MA
