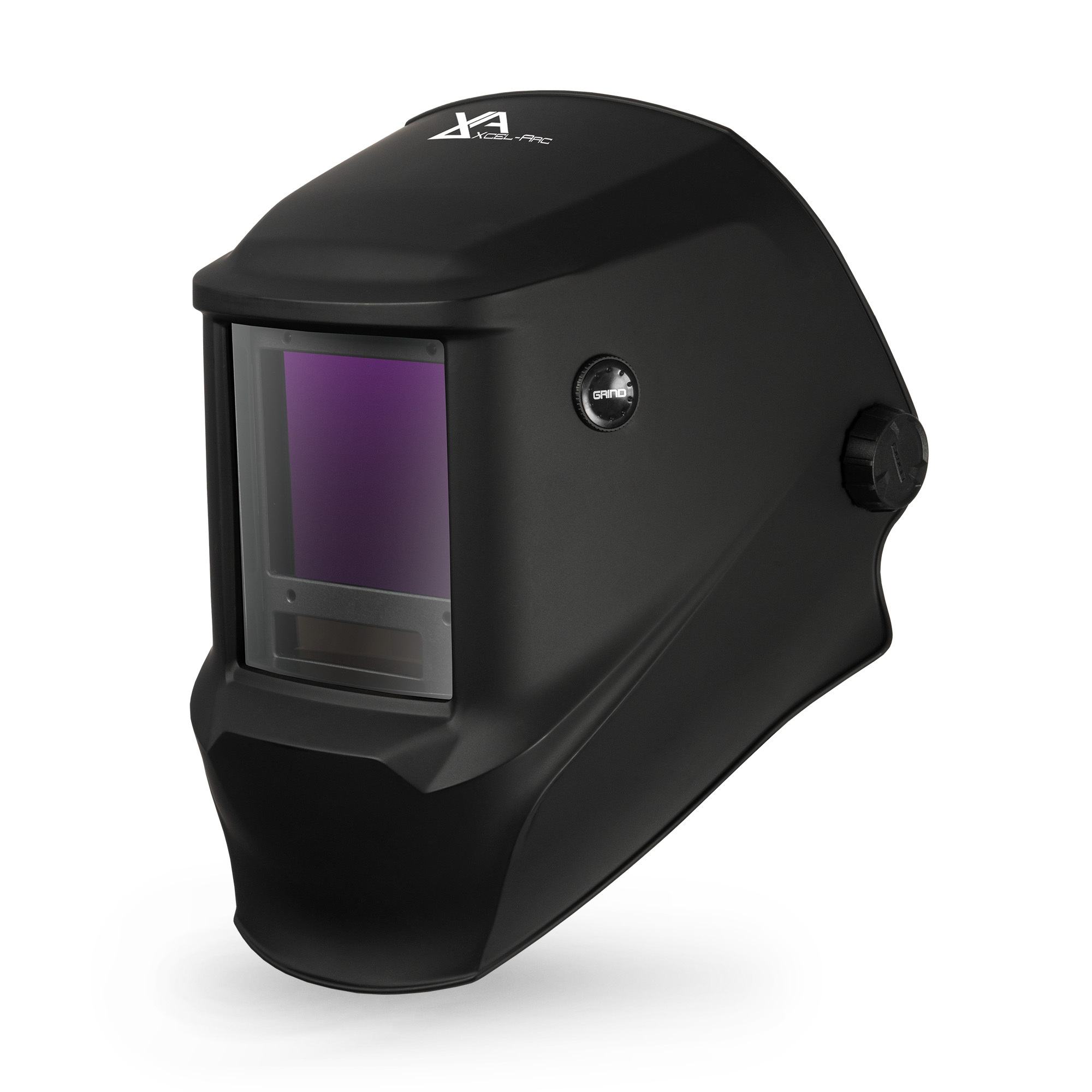

Keep your eyes and face protected during every weld with our AS8000D welding helmets. The 1/1/1/1 optical classification combined with the large 100×83.4mm viewing lens means you get superior visibility in every situation. You’ll also be abe to save your favourite shade settings with the memory states, so your setup is instant.
ELITEVISION™ Lens Technology
Elitevision lens color Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.
Click and slide the BeforeAfter icon to see the difference.
1/1/1/1 CLASSIFICATION
Superior optical clarity with a 1/1/1/1 classification. Get an Auto-Darkening Filter (ADF) that’s scored top marks across the board for a crystal-clear view of your weld at every angle

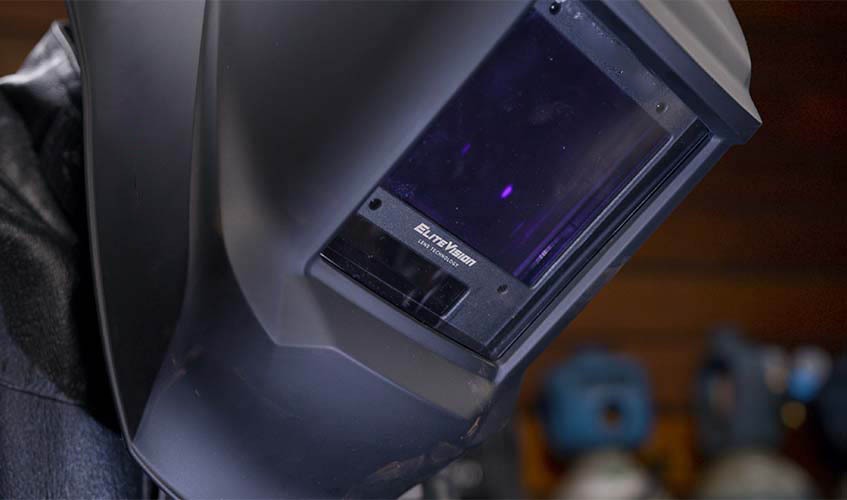

100x83.4mm View Size
Superior visibility in every situation. The 100×83.4mm viewing area lets you see every weld with complete clarity.

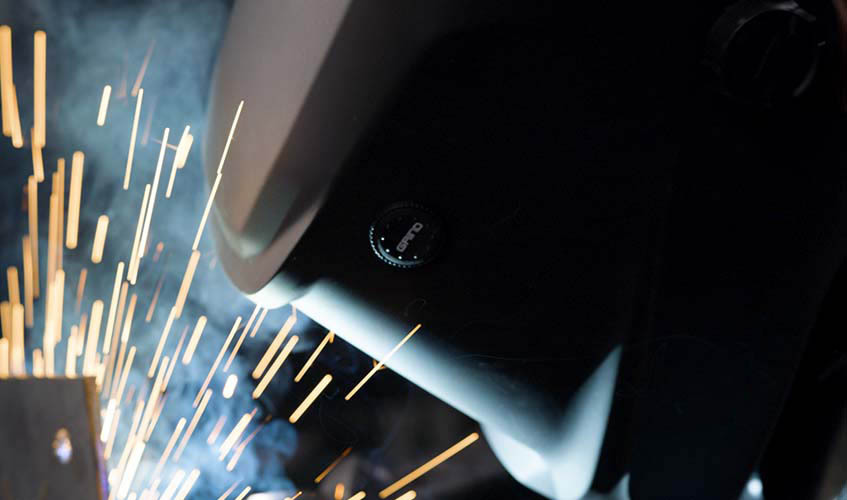

External Grind Button
Seamlessly switch to grind mode with the click of a button. When the helmet is in grind mode a small LED will illuminate, so you don’t need to take the helmet off to check.
HELMET SPECIFICATIONS
FILTER DIMENSIONS
114x133x9.5mm
VIEW SIZE
100x83.4mm
ARC SENSORS
4
CLASSIFICATION
1/1/1/1
LIGHT STATE
4
DARK STATE
5-9 / 9-13
UV/IR PROTECTION
DIN15
TIME FROM LIGHT TO DARK
0.04ms
TIME FROM DARK TO LIGHT
0.1-0.9s
SENSITIVITY DELAY
Adjustable (1-5 for low-high)
POWER SUPPLY
Solar Cells & CR2450 Replaceable Battery
WARRANTY
3 Years
OPERATING TEMPERATURE
-10˚C to 65˚C
STORAGE TEMPERATURE
-20˚C to 85˚C
SHADE CONTROL
Yes
GRIND MODE
Yes (External)
STANDARDS
AS/NZS 1337.1 B (High Impact) AS/NZS 1338.1 (Auto-Darkening)
REPLACABLE PARTS
OUTER LENS
XA-FCL133-114
INNER LENS
XA-ICL106-90
HARNESS
XA-AS-4-HB
SWEAT BAND
XA-AS-4-SWB
HARNESS BACK PAD
XA-AS-4-BP
FILTER
XA-5122DG
MAGNIFICATION LENS
MWL4215 - 1.5x Magnification Lens, MWL4220 - 2.0x Magnification Lens, MWL4225 - 2.5x Magnification Lens
Product Code: AS8000D
