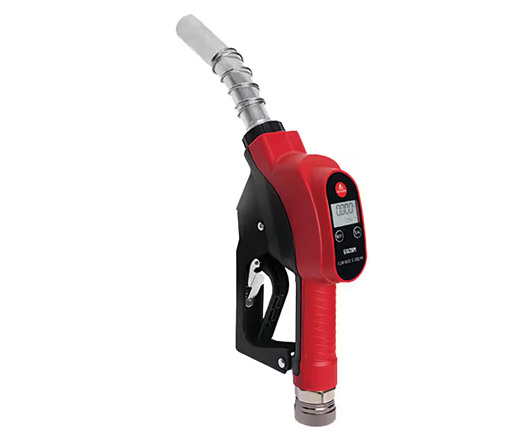

The 51039M automatic shut-off nozzle is uniquely designed with a built-in digital meter with a flow rate of 120L/min and is suitable for dispensing diesel fuel and will automatically shut off when a tank is full. This innovative combination of nozzle and meter at 120L/min saves time and simplifies the previous more expensive method of a separate nozzle and meter. The digital meter is powered by two new 1.5V alkaline / LR1 / E90 batteries, displays a 5-digit resettable total and a 7-digit (non resettable) cumulative total function, and is accurate to ±1%. The LCD screen can display several modes by pressing the menu button including level of battery charge, flow rate, calibration and units of dispensed diesel fuel (litres, gallons, pints or quarts). And for peace of mind, spare parts for both nozzle and meter are readily available. Flow rates of up to 120L/min are achievable within operating temperatures of -25ºC to 55ºC with an operating pressure of 5 to 50psi (0.5-3.5 bar). The 51039M comes complete with a 1" BSP(f) swivel and a 29mm OD outlet spout.

SPECIFICATIONS

Flow Rate Range Working Pressure Inlet Size Outside Diameter of spout Self-sealing Performance (1 second before nozzle closes flow rate) Electrical Continuity Accuracy Repeatability Unit of Measure Ambient Temperature Application 10-120LPM 5psi (0.35bar) to 50psi (3.5bar) 1" BSP 29mm 12~15L/min ≤4Ω ±1% ≤0.2% Litres, Gallons, Quarts, Pints-25°C ~ +55°C Diesel only

Product Code: 51039M
